acidlab

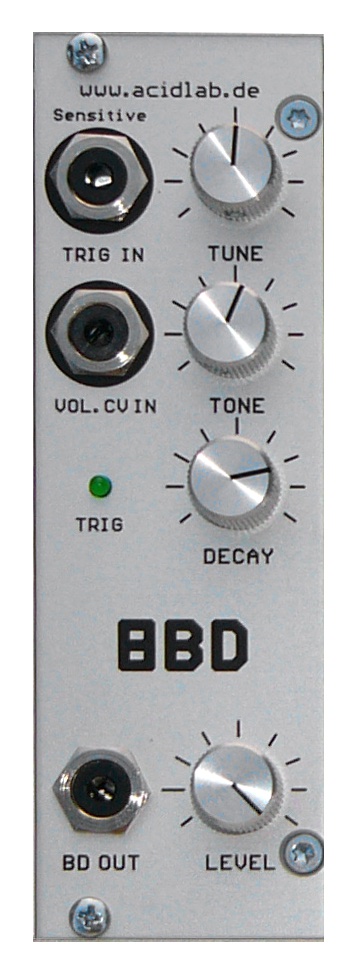

8bd

price : $145.00

the 8bd is the modular version of the tr-808 bass drum. the gate in is "sensitive" and affects the sound. the higher the pulse (+5v to +12v) at the gate in the more attack and louder the sound gets. an additional control voltage or a gate signal fed to the vel. cv in (velocity in) will overwrite the dynamic control from the "sensitive" gate in. then the gate in just triggers the sound (>5v) and vel. cv in (0-12v) defines the velocity of the sound.

controls:
tune
tone
decay
level

inputs/outputs:
trig in
velocity cv in
bd out

module size:
width: 8 hp
depth: 28 mm

power consumption:
20ma @ +12v
20ma @ -12v
