back to main acidlab page


price : $230.00

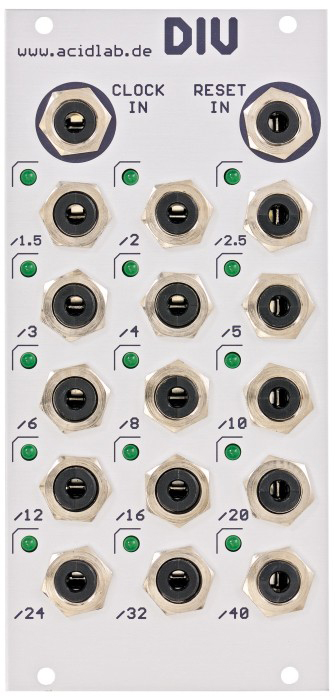

the acidlab div is an edge-triggered clock and frequency divider for both clock and audio signals. it has the following features:
symmetrical square outputs (pulse width at 50%)
input frequency up to 50khz
input threshold at 2,0 volt
ability to generate trigger outputs for rhythm patterns or sub octaves from audio

clock in
reset in
/1.5 out
/2 out
/2.5 out
/3 out
...up to
/32 out
/40 out

width: 12hp
depth: 38mm
