back to main doepfer page


doepfer
a-128 fixed filter bank

price : $230.00








a-128 fixed filter bank with individual audio outputs pre level

price : $300.00




a-128 fixed filter bank with individual audio outputs post level

price : $300.00

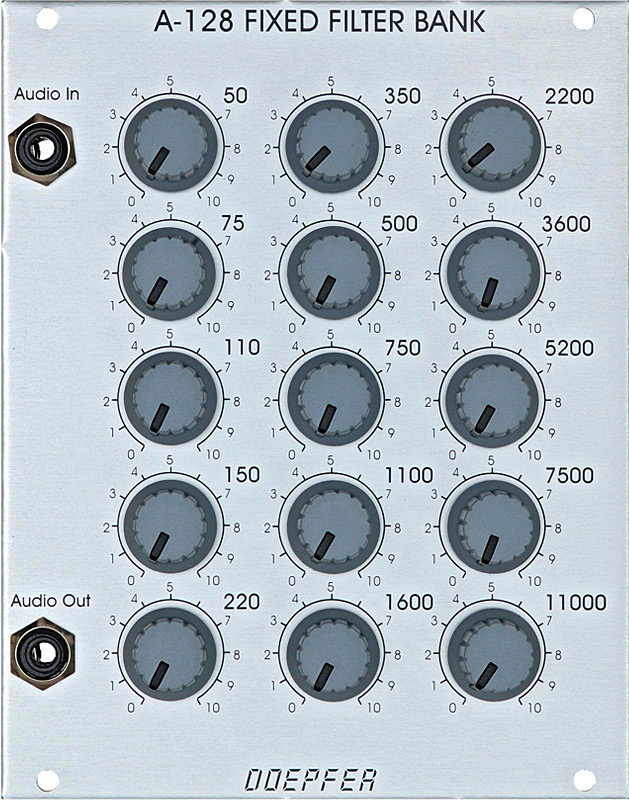

module a-128 (fixed filter bank) is a filter bank, made up of 15 parallel band pass filters, all with fixed middle frequencies and bandwidth (50 hz / 75hz / 110hz / 150hz / 220hz / 350hz / 500hz / 750hz / 1.1khz / 1.6khz / 2.2khz / 3.6khz / 5.2khz / 7.5khz / 11 khz).



each band pass filter has its own amplitude control knob, with which that frequency band can be attenuated. the bandwidth of each of the filters is approximately half an octave.

the signal at the output of the a-128 contains a mix of all the filters, depending on the position of each one's amplitude control knob.

the filter bank's main job is to emphasize individual sections of the whole audio frequency range.

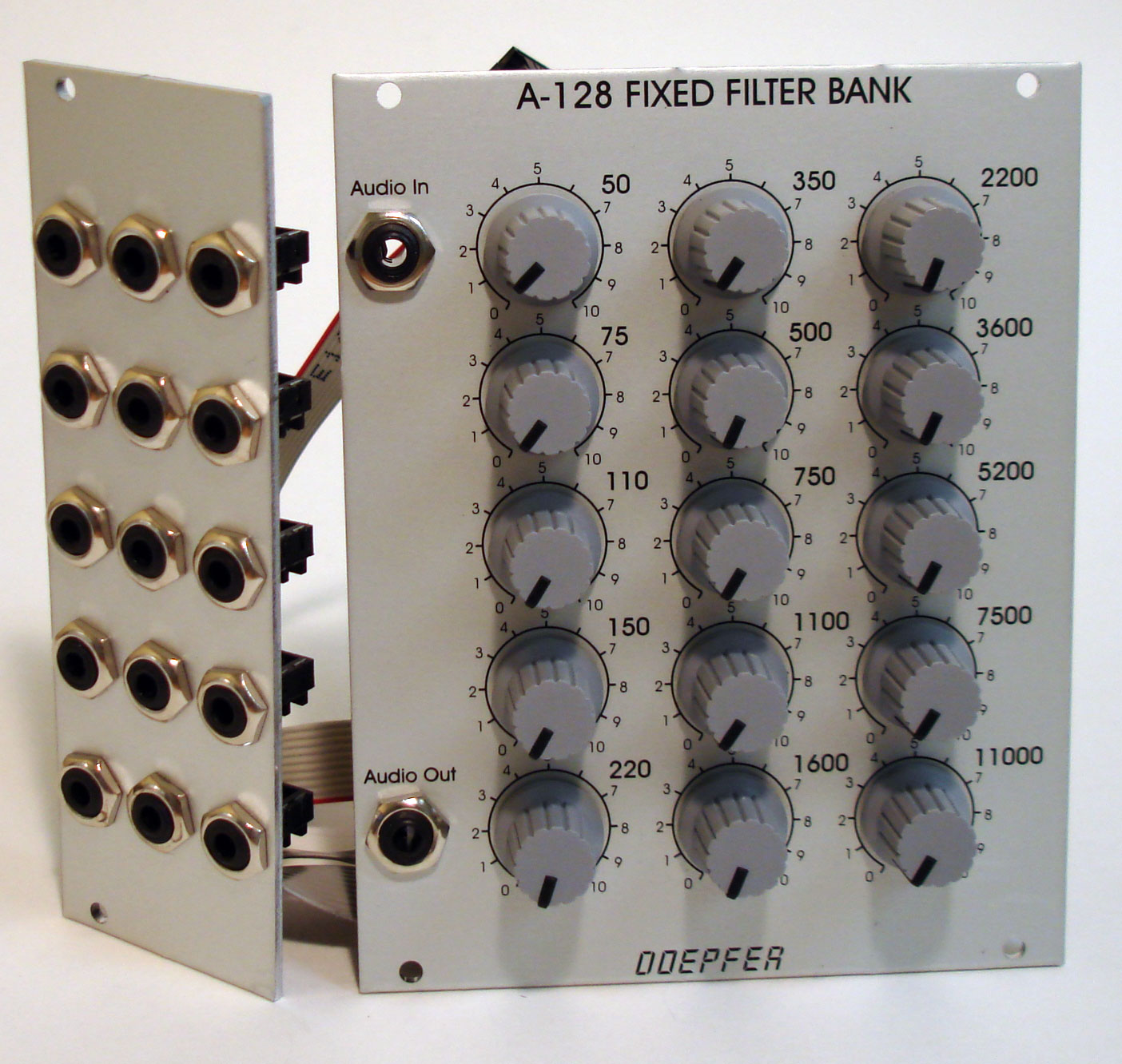

the a-128 is also available with a single audio output for each filter, 15 output sockets total on an 8hp panel. this can be configured pre or post level depending on user preferences.



this module has a maximum current draw of 20ma. it requires 20 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
