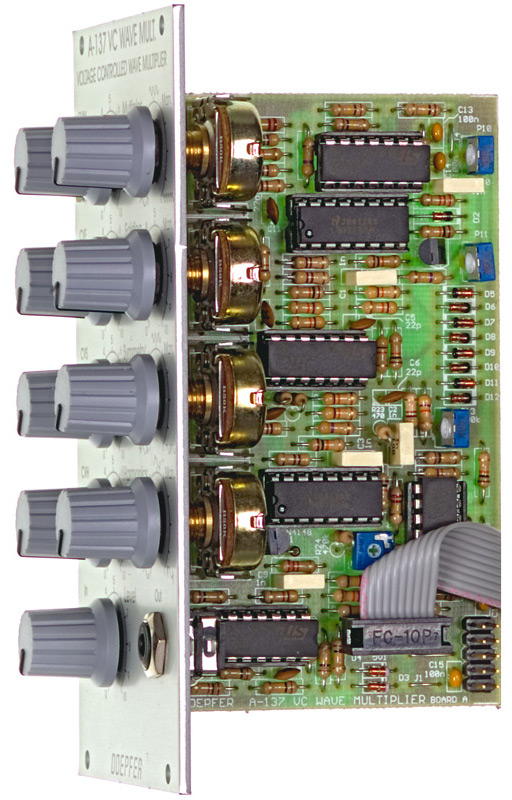

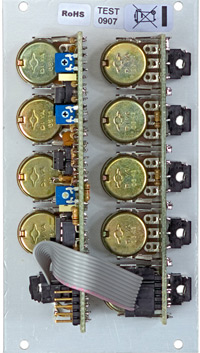

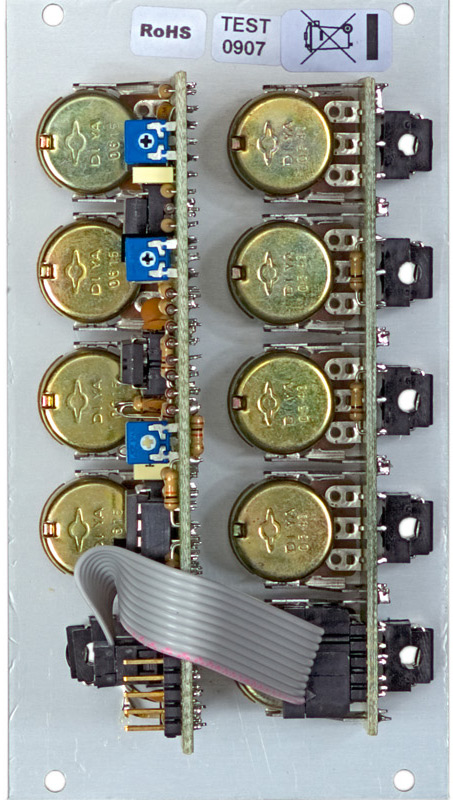

the a-137 is a voltage controlled wave multiplier. the basic idea of a wave multiplier is to multiply the waveform of an incoming signal (e.g. triangle/saw/sine from a vco) within one period of the waveform.
this leads to additional harmonics of the incoming signal. the period and consequently the pitch of the signals remains unchanged (in contrast to frequency multiplication e.g. with the pll module a-196. the
a-137 works as a kind of "inverse low pass filter", i.e. it adds a lot of harmonics to a signal that contains none or only a few harmonics (e.g. sine or triangle waveform). in contrast to that a low pass
filter (e.g. a-120) removes harmonics from a signal that contains a lot of harmonics (e.g. saw or rectangle waveform). consequently the best results are obtained in combination with input signals poor in
harmonics (e.g. sine or triangle). the a-137 can be used with signals rich in harmonics too (e.g. saw) but the effect is not as remarkable as for triangle or sine waves. for rectangle signals none or only
little effects are obtained.
the a-137 is a very sophisticated wave multiplier that offers much more features, more controls and more waveform manipulations than other wave multipliers available so far. in addition all parameters are
both manually adjusted and controlled by external voltages. these are the features of the module:

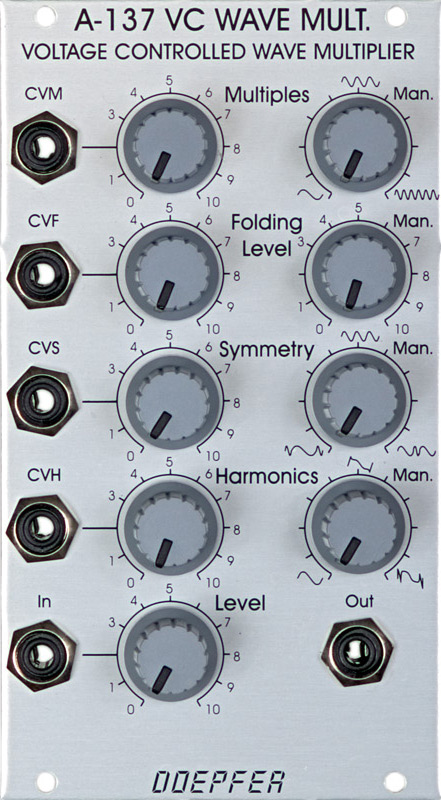

controls:
input level (to adjust the input level for best effect of the succeeding controls)
multiples (number of waveform multiplications, manual control)
harmonics (additional effect that adds more harmonics similar to the resonance/emphasis control of filters, manual control)
folding level (controls upper and lower folding level, manual control)
symmetry (controls symmetry between upper and lower folding level, manual control)
inputs/outputs:
audio in (also suitable for control signals)
multiples cv in (with attenuator)
harmonics cv in (with attenuator)
folding level cv in (with attenuator)
symmetry cv in (with attenuator)
audio out (resp. processed control signal output)
the multiples parameter (manual and ext. cv) defines the number of basic wave multiplications within one period. with the folding level and symmetry parameter (both manual and ext. cv) the upper and lower
clipping levels of the wave folder units are controlled. the harmonics parameter (manual and ext. cv) adds some harmonic content by sharpening the waveform edges and adding overshoot peaks. it works a little
bit like the resonance control of a vcf. the module is fully dc coupled, i.e. even control signal can be processed with the modules.
as it is a little bit difficult to describe the parameters only by words we have some pictures and audio examples available that explain the function of the module and its parameters.
the level control is used to adjust the the input signal (audio or control signal) to a level that creates the best effects when the 4 parameters of the module are altered. the signal is processed by a vca
and 4 so-called wave folding stages. from the parameters folding level and symmetry the upper and folding level is derived for each stage. at the clipping levels the signal is "folded back", i.e. the

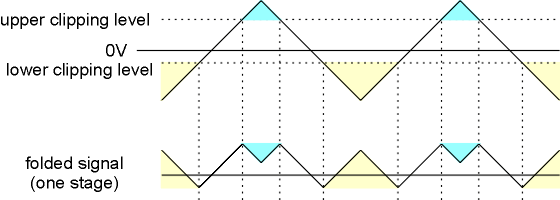

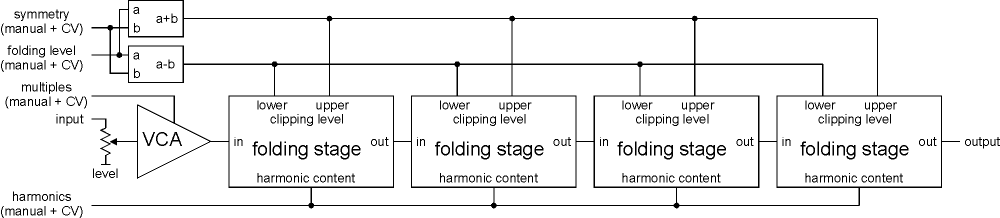

direction is inverted or the signal is "reflected" at the clipping line. the working principle of the first folding stage is shown in the next picture. as the module contains 4 folding stages up to 8
foldings are possible (4 at the upper and 4 at the lower clipping level).
the incoming signal of each stage is folded back as soon as the signal level goes beyond the upper clipping level resp. is folded up as soon is goes below the lower clipping level (a-136 users will know this
function, indeed the a-137 includes 4 stages similar to a-136 but with some fixed settings). as mentioned above upper and lower clipping level are controlled by the folding level and symmetry controls (both
manual and cv controlled). from our point of view these parameters are easier to use than upper and lower clipping level. the internal upper and lower clipping levels are derived by adding resp. subtracting
the folding level and symmetry voltages. the vca setting (multiples control) defines the number of wave multiplications or foldings as the multiplications depend upon the level that appears at the folding
stages. smaller levels lead to less multiples, higher levels cause more multiples as the folded output signal of the preceeding stage has sufficient level for a subsequent folding in the next stage.
the harmonics control sharpens the waveform slopes and adds some overshoot at the edges - a little bit like the resonance control of a filter. internally the harmonics feature is realized by an additional
vca for each folding stage.
the following pictures show the output waveforms that result by changing the parameters mentioned above. to simplify matters the waveform below pictures show only the variation of one parameter while the
others remain unchanged (remember: all parameters can be modified at the same time with 4 different control voltages)! for all pictures as input a sine wave was used and can be recognized best in the upper

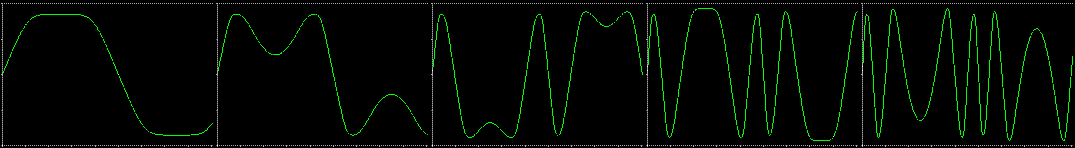

left picture (the original sine wave is only a little bit clipped in this picture). changing the multiples parameter from low (left picture) to high (right picture), manually or with an external control
voltage, the other parameters remain unchanged.

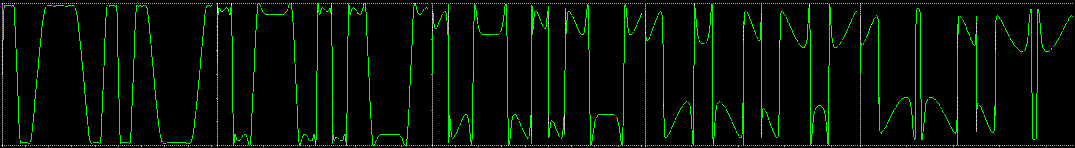

changing the harmonics parameter from low (left picture) to high (right picture), manually or with an external control voltage, the other parameters remain unchanged.

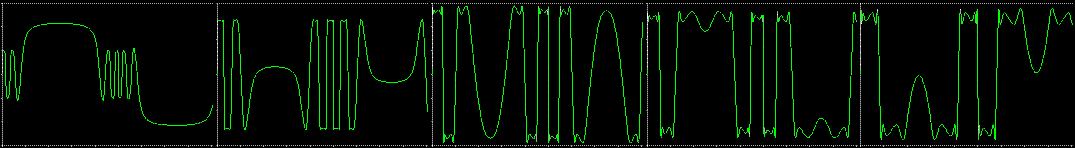

changing the symmetry parameter from negative (left picture) via zero (middle picture) to positive (right picture), manually or with an external control voltage, the other parameters remain unchanged.

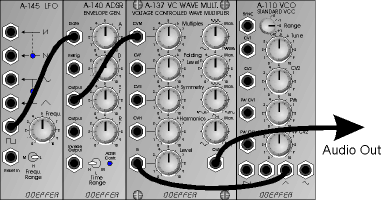

the three examples are made with the patch shown on the left side (no additional effects / modules / processing). the triangle output of a vco (a-110) is used as audio input for the a-137. the multiples
parameter is controlled by an adsr (a-140) that is triggered by a lfo (a-145). in the first example envelope time and lfo period are short, in the second example a bit longer. in the third example envelope
time and lfo period are faster again and the remaining three parameters (folding level, symmetry, harmonics) are modulated slowly by three additional a-145 lfos (not shown in the patch).
this module has a maximum current draw of 40ma. it requires 14 te/hp worth of space to fit in a eurorack frame.
