doepfer
a-162 dual trigger delay

price : $80.00

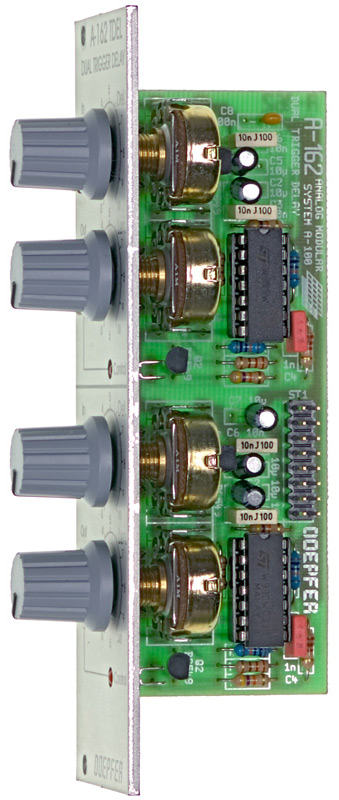

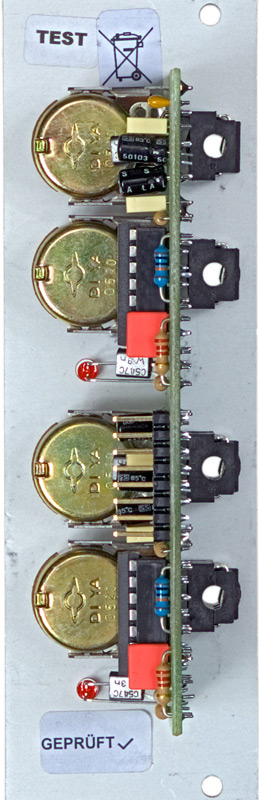

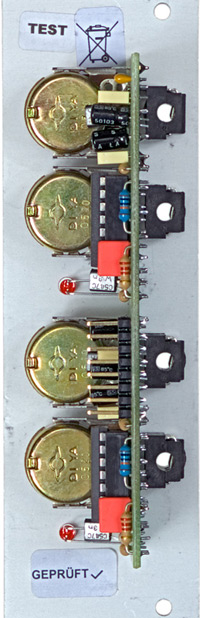

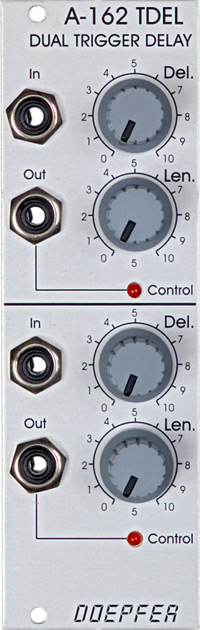

A-162 Dual Trigger Delay

module a-162 contains two separate delay circuits for trigger signals. this module makes it possible to delay the onset of a trigger pulse, and also change its length.



on each of the trigger delays, two controls can alter the onset time and duration of triggers, from about 0,01 up to round about ten seconds. a control led indicates the onset and duration of the new trigger.

a voltage controlled version of a trigger delay can be realized with the module a-142 voltage controlled decay/gate.



this module has a maximum current draw of 40ma. it requires 8 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
