back to main doepfer page



a100 modular systems


there are no fixed rules for which and how many modules are required in an analog modular system. if you are a beginner, you might have problems in finding the right combination of modules for a basic system. thus, we have arranged some system packages to start with, containing the modules in the tables below. the main difference between the basic systems 1 and 2 is the midi interface. system 1 is not equipped with a midi interface. if you want to control this system with midi you need an external midi-to-cv interface (e.g. mcv24 or mcv4). system 2 contains the midi interface a-190 instead of the two modules a-150 (dual vcs) and a-162 (dual trigger delay).

the modules are mounted into a 6u base frame and each system contains 30 patch cables (mixed length and color). the basic systems 1 and 2 are available also as portable suitcase versions. because of the 8hp power input the suitcase versions contain one module less (system 1: no a-162 / system 2: no a-170).

additionally we offer a minimal 'entry system' built in to a 3u base frame with midi interface containing all modules for absolute basic applications of the a-100.

the purpose and function of the other modules not included with the basic systems will become clear while you are working with the a-100 system. if you want to expand the basic systems you need an empty frame (3u or 6u) and the desired additional modules and patch cords.


Doepfer System Suggestions :



A100 Mini Basic System (rack) - details...

The A-100 Mini System is an useful minimal configuration of the A-100 system. It contains 10 modules including a MIDI interface.



a100 basic system 1 - details...

the a-100 basic system 1 is a reliable starting point for working with the a-100 but it contains no midi interface.



a100 basic system 2 with midi - details...

the a-100 basic system 2 is nearly identical with to the basic system 1 but includes a midi-interface.




other suggestions :



please remember that these systems are only suggestions and many different combinations can be custom made for you.

please email or call us with your exact requirements...



Expansion Systems :

These are expansion systems to the basic systems (A-100BS1 or A-100BS2) and contain important modules that are not included in the basic systems.

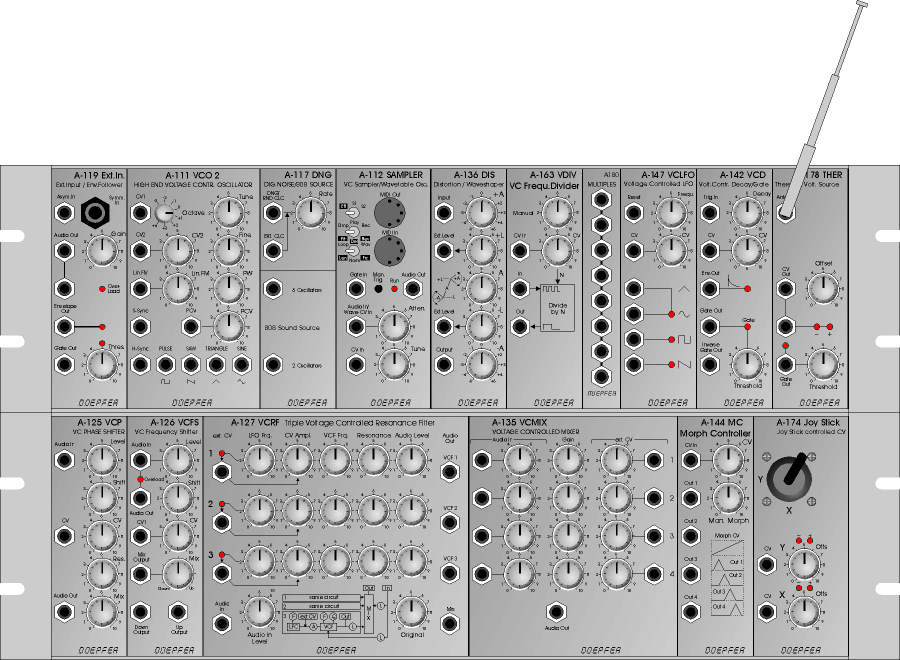

A100 Expansion System 1 - details...

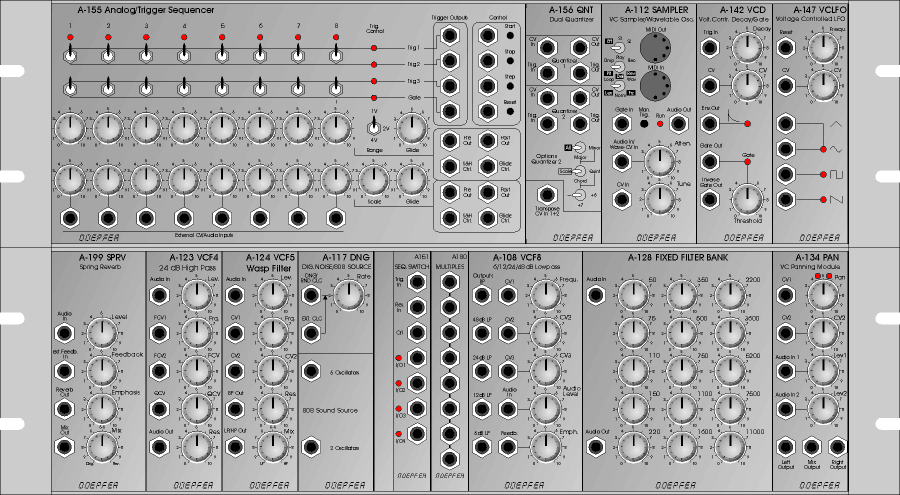

A100 Expansion System 2 - details...



Sound Processing Systems

These systems are intended to process external audio signals and do not contain sound sources (i.e. no VCO, noise, sampler or similar modules) but only sound-processing modules and control voltage sources belonging to them.

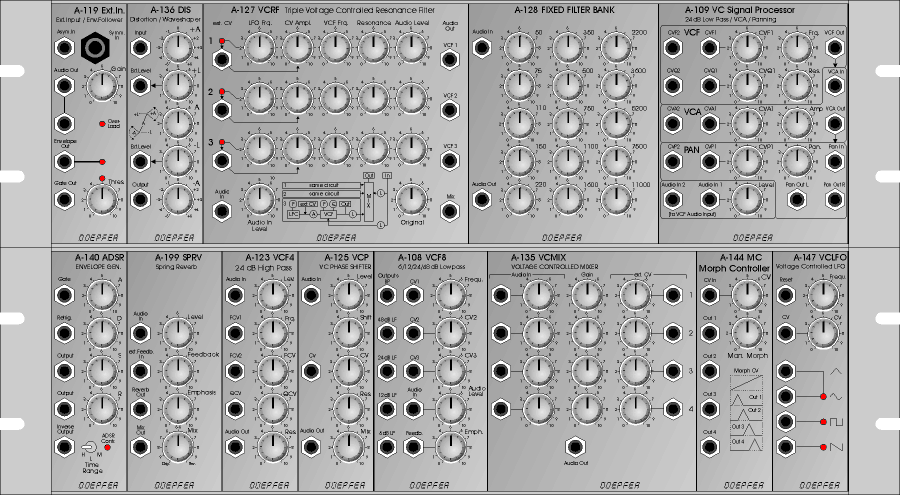

A100 Sound Processing System 1 - details...

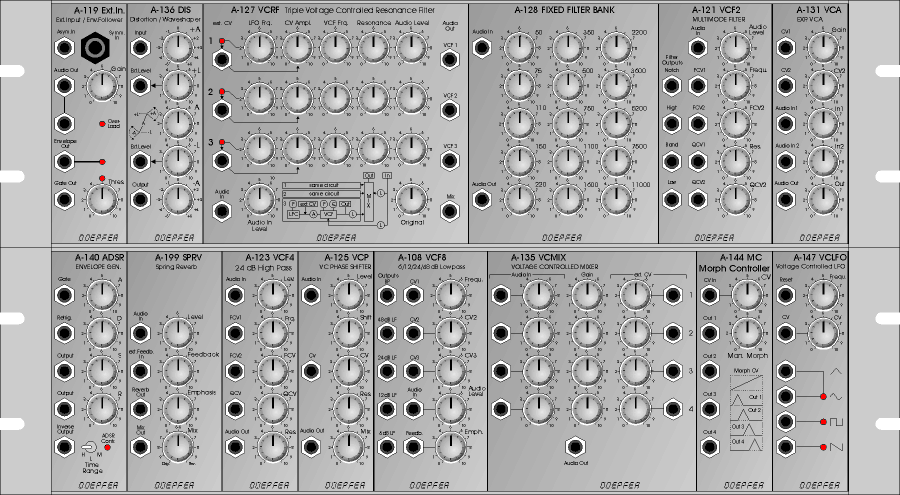

A100 Sound Processing System 2 - details...

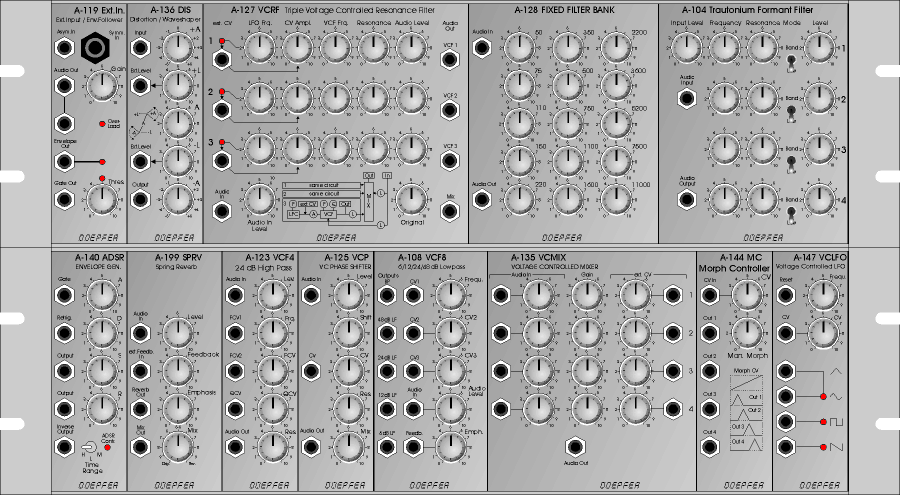

A100 Sound Processing System 3 - details...



Theremin Systems

Some examples that are based on Theremin control.

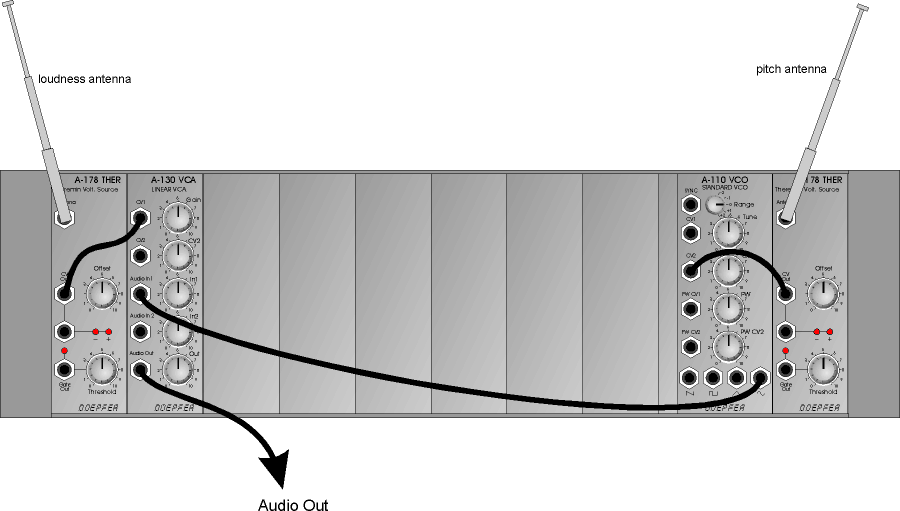

A100 Simple Theremin System - details...

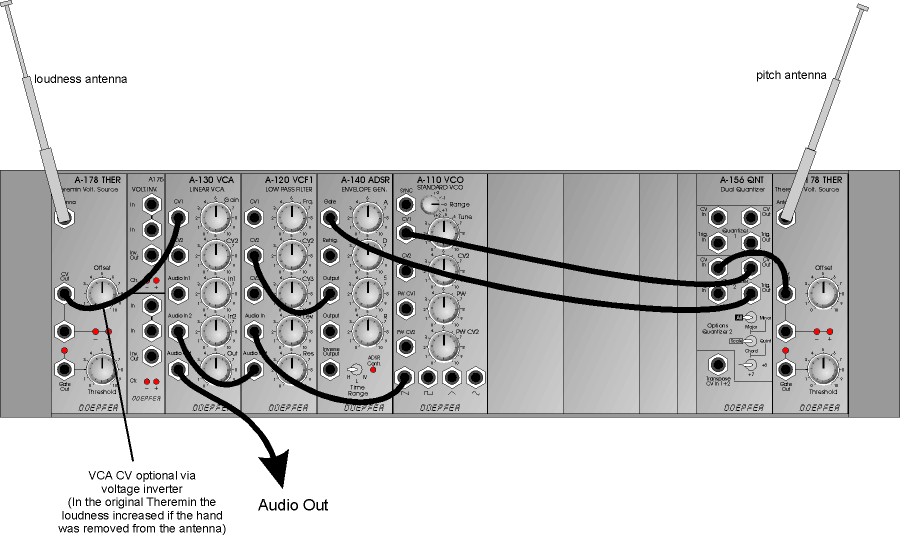

A100 Extended Theremin System (with Quantizer and CV Inverter) - details...

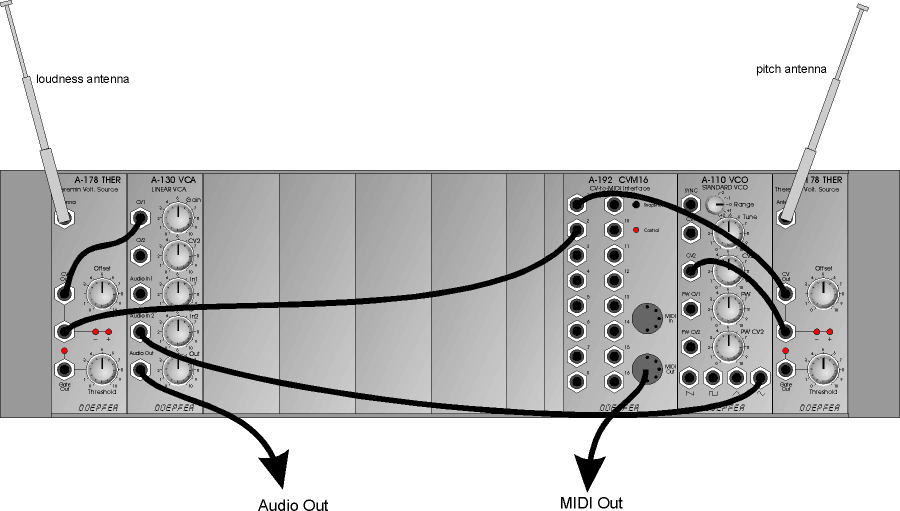

A100 Theremin System with MIDI Output - details...

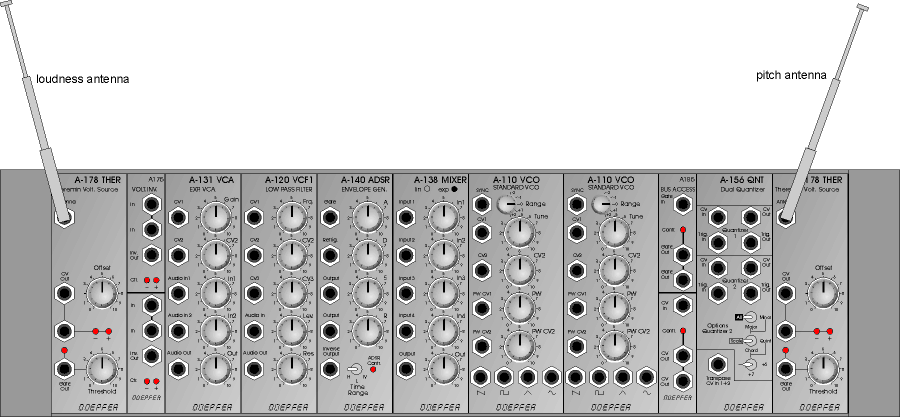

A100 Theremin controlled Synthesizer - details...



Other Systems

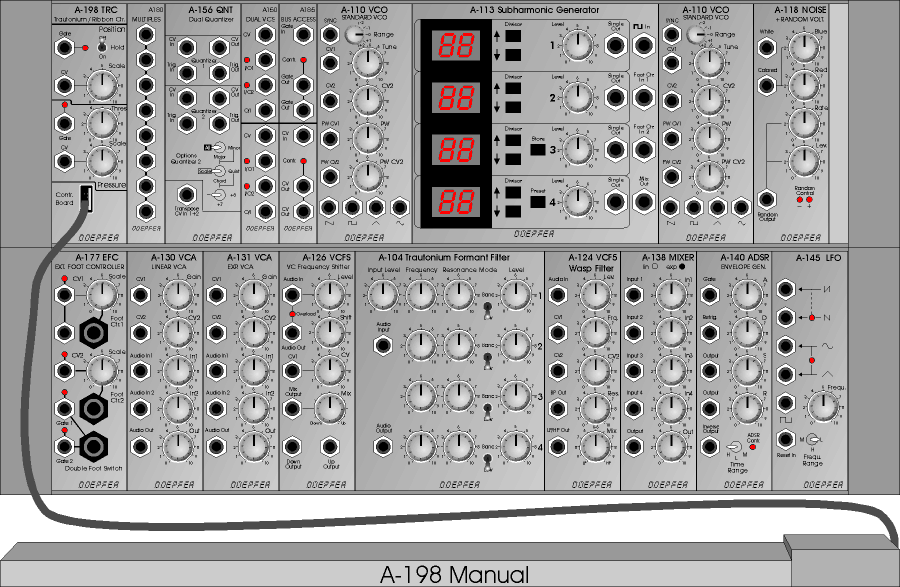

A100 Trautonium System - details...

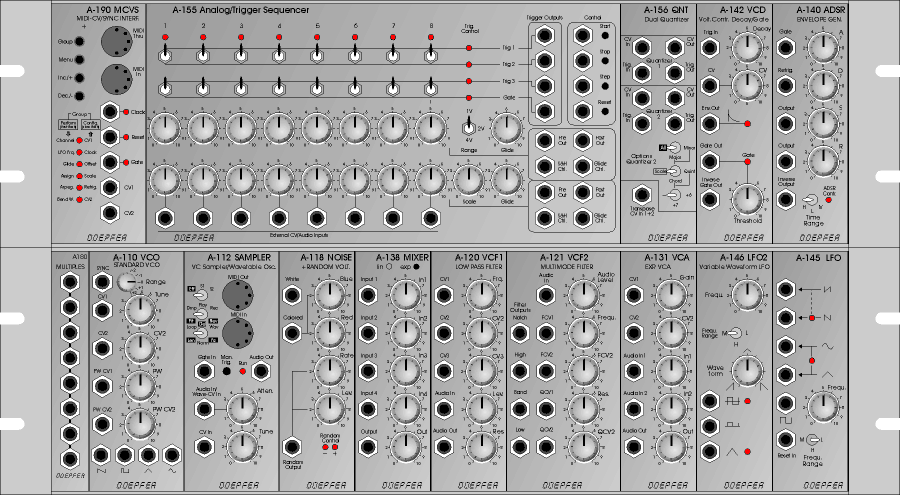

A100 System with Sequencer and Sampler - details...







Please remember that these systems are only suggestions and many different combinations can be custom made for you.

please email or call us with your exact requirements...
