back to main dreadbox page


price : $439.00

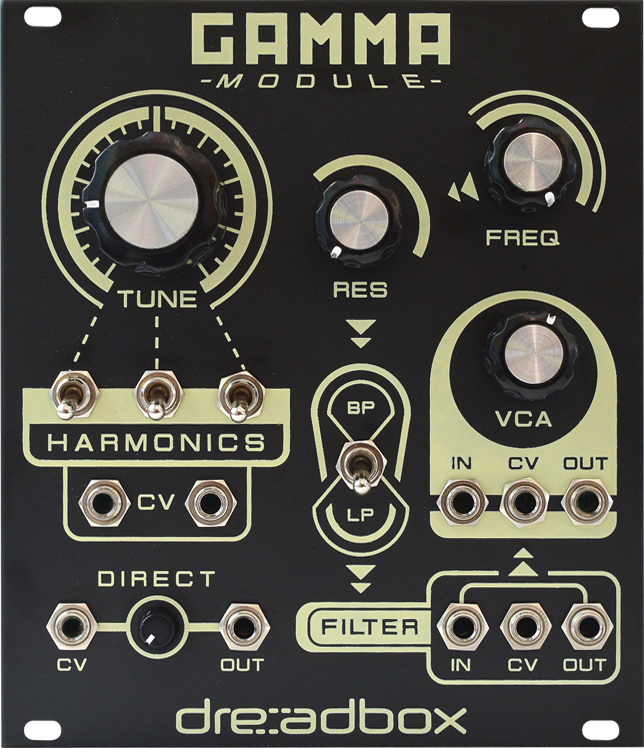

synth voice
its unique oscillator is consisted of 6 sawtooth vcos
it can produce from fat bass to space noise sounds
2-pole 12db self-oscillating state variable filter
dual vca

voice: 3-6 vcos 10vpp
vco cv: accepts +/-12v (tunable at 1v/oct)
direct vca: 5vpp output, accepts cvs +/-12v, works best at +/-5v , by-passes the filter
filter: accepts cvs +/-12v, works best at +/-5v
cut off frequency range: 50hz - 12khz
main vca: cvs +/-12v, works best at +/-5v
output: +/-10vpp
22 hp

download the users manual here.
