back to main dreadbox page


price : $429.00

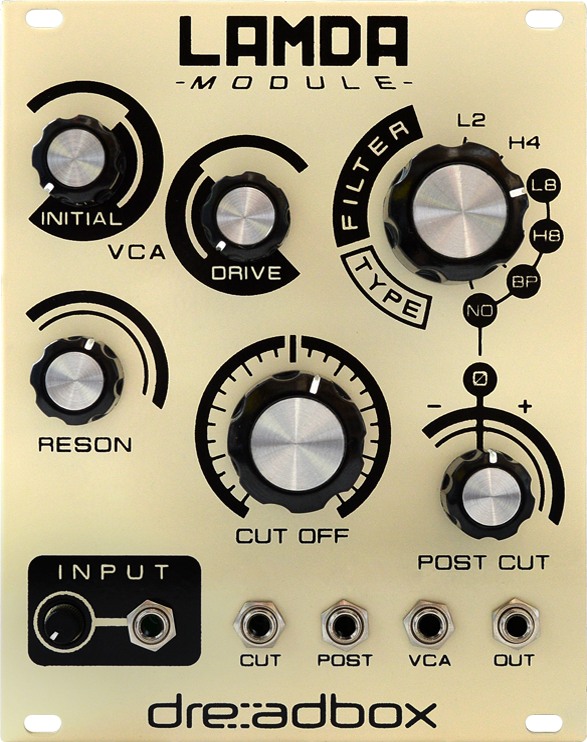

8-pole 48db state variable filter
dual resonance frequencies

filter types
2pole low pass (single resonance frequency)
4pole high pass (single resonance frequency)
8pole low pass
8pole high pass
8pole band pass
8pole notch

ota vca
ota drive circuit
filter can be pre-driven with high input levels

input: works best with 10vpp signals
cut off frequency range: 20hz - 20khz
cut off cv: accepts +/-12v
post: accepts +/-12v
vca: accepts +/-12v, works best at +/-5v
output: maximum 12vpp, depending on the setting
20 hp

download the users manual here.
