back to main dreadbox page


price : $319.00

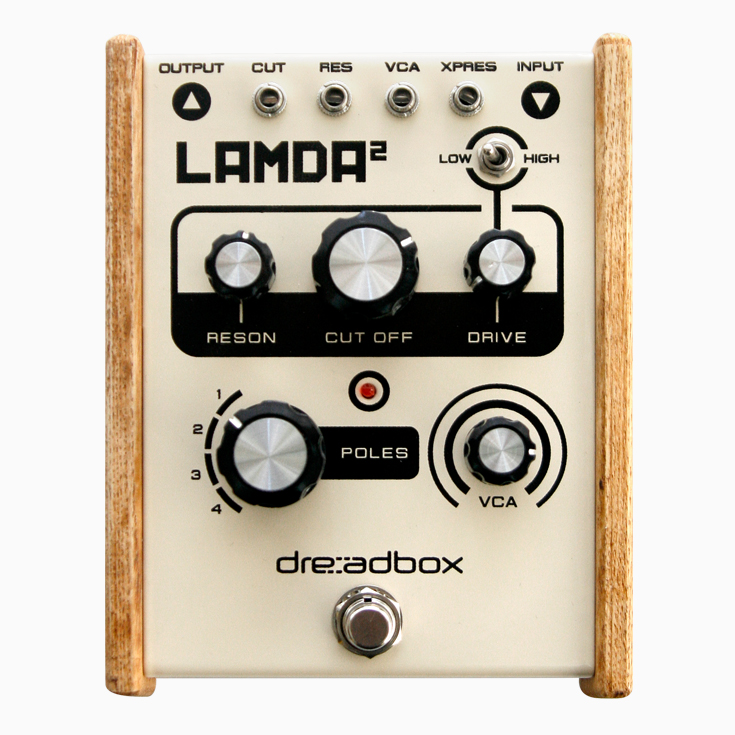

1-4 pole low pass filter
self-oscillating resonance
armed with an ota vca
overdrives signals into its filter
expression pedal to cv converter

true bypass
cut input: +/- 5v optimal, max +/- 9v
res input: 0-5v optimal, max +/- 9v
vca input: +/- 5v optimal, max +/- 9v not filtered for square waves (it will produce pops)
xpress out: 0-5v
resonance self-oscillation output at max vca level: 1 pole: 5vpp, 2 pole: 4vpp, 3 pole: 3vpp, 4 pole: 2,5vpp
power consumption: 50ma
works only with 9v dc (center negative) power supply, which is not included
does not work with batteries
size: 147x116x58

download the users manual here.
