back to main dreadbox page


price : $419.00

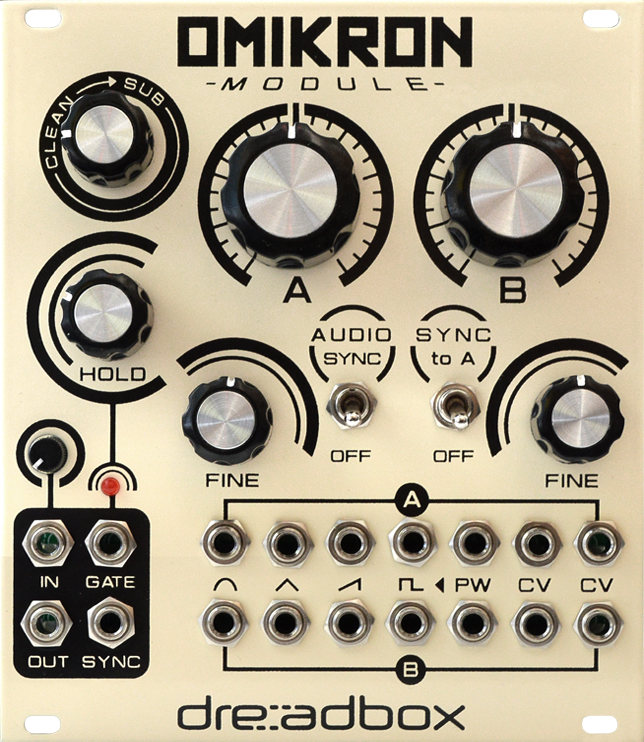

2 oscillators with 4 waves each
pulse width modulation input

audio interface
- sub wave generator
- audio to gate generator
- audio to sync convertor

audio can sync the vco

audio interface
in: works with any level of instrument and above
out: sends the clean to sub level at a max 5vpp, depending on the setting
sync: sends 10vpp pulse, matching with the frequency of the audio input
gate: sends 0-5v pulse

all waves are 10vpp
pw: accepts +/-5v
cv: 1v/oct tunable, accepts +/-12v
osc frequency range: no limitations
22 hp

download the users manual here.
