flame
memoslider

price : $290.00



Memoslider

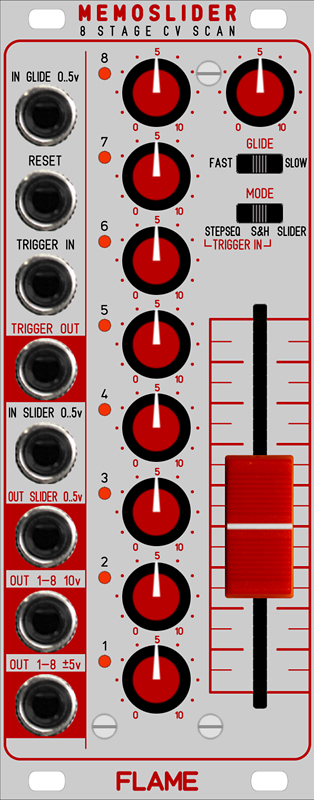

the flame "memoslider" module is a small programmable analogue slider module, designed for small mobile euro racks.

there are three play modes.
slider: for manually selection of one of the eight steps
sample and hold: for synchronized selection of one of the eight steps
stepsequencer: like an analogue stepsequencer

two seperatly different output voltages of the pots 1-8 are available: unipolar 0..+10v and bipolar -5..+5v
additional the directly slider voltage input and output (0..+5v) are available.
the module have a glide function (manually via pot or via external cv).

it's possible to link several modules like an multi track sequencer or to connect several modules in parallel.

specifications:
+ 40ma / - 5ma
euro rack format 3u / 10hp 50,5x128,5mm

click here for the user manual.
