matter (copper faceplate)

price : $449.00

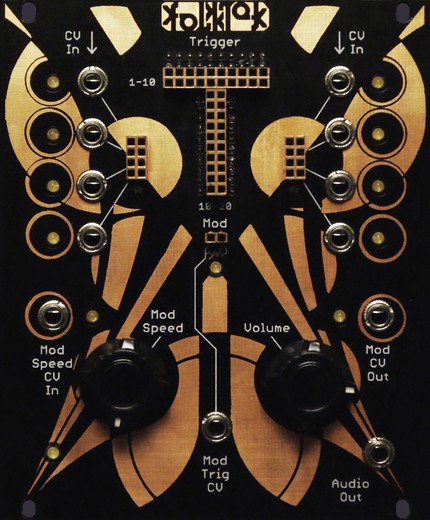

Matter (Copper Faceplate)

matter plug-in and card set 1

price : $168.00

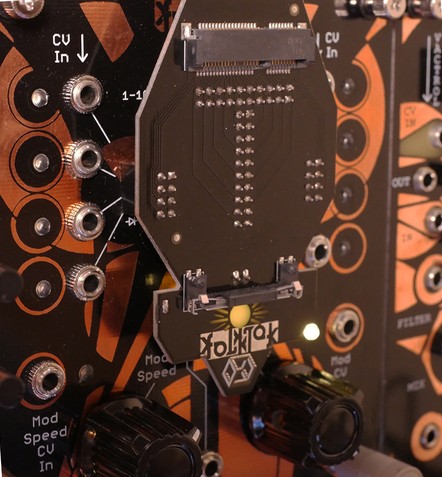

Matter Plug-in and Card Set 1

"matter" is drum wave synthesis. while it could simply be called a drum synthesizer, the method of play is designed equally as much to make the analog drum-based synthesis playable as waves as it is to maketriggerable drum sounds. this means matter can take a "kick" oscillator, for example, and use it to generate a bassline, a "snare" can create washes of noise with peaking resonance, and so on. this allows for avery broad complexity of rhythm because triggering is not confined to a single point. that said, this module specializes in clicks and cuts style beats - little clicky sounds.

matter is also very capable of generating complex drone and rich synthesis and does not need to be used as a drum synth at all. it utilizes the same analog synthesis as materia which means it also works withaspects of deductive synthesis where noise and sound is "patched out".

like most future eurorack modules by folktek, matter utilizes an onboard patch system with its own patch cables (supplied). the purpose for this is to allow for more possibility while keeping things compact.with future add-ons, use of the patchbay will be optional and interchangeable. in this case, matter has two primary patchbays (1-10 and 11-20 (incorrectly labeled 10-20)) which represent controllable accesspoints within the circuitry for cv or gate signals to be applied (each cv input has an led for voltage visualization). 20 access points each doubled for stacking input or creating direct patches. up to a totalof 8 cv/gate input jacks and an additional modulation cv/gate input are jumpered by the player to the main patchbay to generate sound. hard patches (direct point to point) can be used to create layers, triggermultiple oscillators, generate drone and permanently alter the sound shape, filter or resonance.

once a jumper patch is set up, it does not need to be's completely optional - each cv/gate input will be dedicated to a trigger. cv/gate inputs can change and the trigger points will remain.

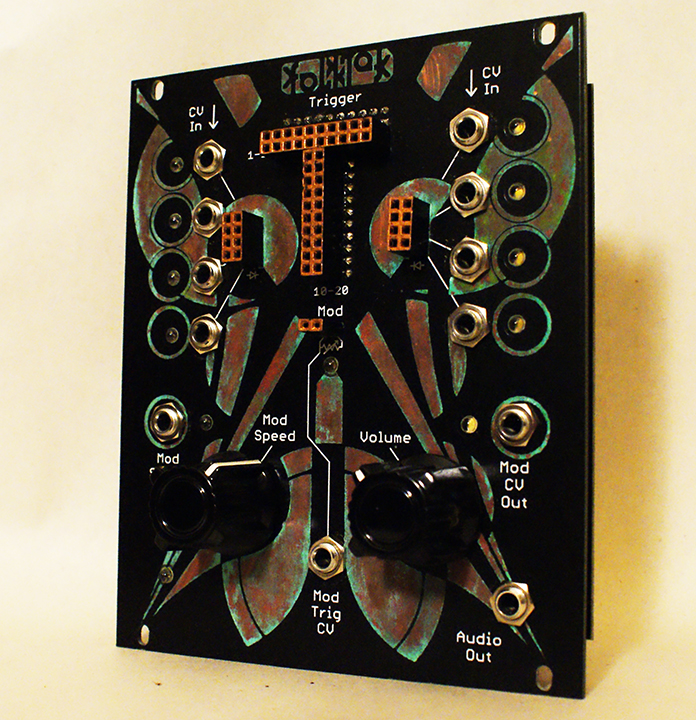

Folktek Matter: Angle View

because the inputs are jumperable, they can also be used in a variety of different ways other than direct cv triggering.

= sound can be sent in to a few points on the matter circuitry where it uses some of the pathways of filtration, overload and distortion.

= external audio or cv signals can be jumpered through the modulation.

aside from the primary synthesis, matter also has vactrol-based sine modulation which can be used in a number of ways;

- external audio can be patched into "mod trig cv" which sends the audio through the vactrol modulation. that audio can then be jumpered into the circuitry where it will be filtered, distorted or effected in anynumber of ways. or, for a clean modulation the audio can be jumpered to another jack and output.

- matter audio output can be sent through the modulation and jumpered to a new jack.

- external cv can be patched to the "mod trig cv" jack and jumpered to the main patchbay to have a modulated cv signal activating the synthesis. or likewise, the cv signal can be jumpered to a jack to simplypass through the vactrol modulation.

- mod cv out outputs the modulation control voltage independant of the vactrol.

modulation has speed control dial, cv speed (vactrol), input ("mod trig cv" vactrol) and cv out.

volume control and mono output.
+12 = xma
-12v = 0
5v = 0
1" depth
