kenton electronics
modular solo

price : $299.00

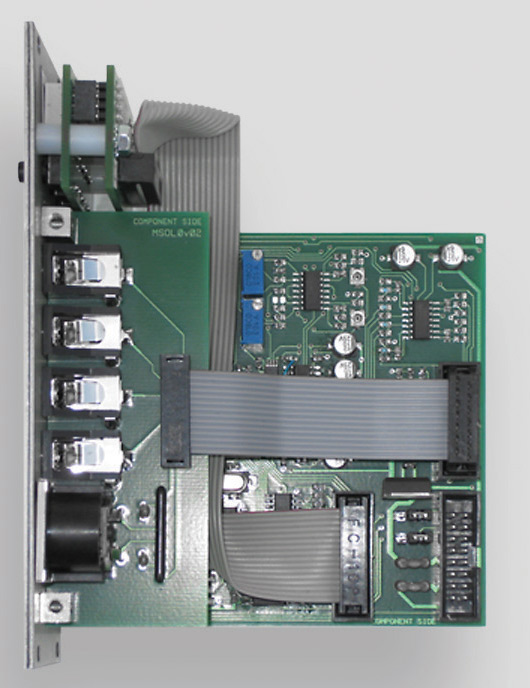

Modular Solo

high specification eurorack modular midi to cv converter

the modular solo is supplied complete with ribbon cable ready to fit into any eurorack (a100) format modular system.

power is supplied by the power supply in the modular case via the backplane
power consumption +12v supply 85ma max / -12v supply 3ma
+5v supply is not required (needs +/-12v only)
cv & gate signals can be sent via the ribbon cable to the system bus - selected using jumpers
midi in & out on din sockets (midi out can be switched to give din sync 24 instead)
analogue output cv on 3.5mm mono jack (v/oct or hz/v or 1.2v/oct)
gate on 3.5mm mono jack (gate or s-trig - with or without pullups)
aux1,2,3,4 on 3.5mm mono jack (all continuosly variable)
2x independent clock outs on 3.5mm mono jack
weight 170g
dimensions 128mm high x 50mm wide x 80mm deep
d to a conversion for main cv 16 bit high quality / low drift dac
non-volatile memory eeprom (no back-up battery required)
processor 32 bit arm processor



features:
designed to control all types of mono-synth
super-fast response time
famous kenton build quality
high specification 16 bit d/a converter for main cv for rock-steady pitches
cv/gate/aux/clock outputs on 3.5mm mono jack sockets (3.5mm to 1/4" cables are available in our cables section)
cv & gate signals can be sent via the ribbon cable to the system bus - selected using jumpers
midi in socket (5 pin din)
midi out/thru (5 pin din) socket can be switched to become din sync 24 instead
any midi channel can be selected
switchable for v/oct & hz/v & 1.2v/oct scaling systems
fine tune & scale are software controllablev transpose (coarse tune) - up & down 12 semitones
adjustable pitchbend range - up to 12 semitones
programmable gate v-trig (up to 10v) or s-trig (with or without pull-up)
multiple and single trigger modes
note priority selection - newest / lowest / highest
old notes are remembered to facilitate trill effects and increase playability
portamento - fixed rate or fixed time modes
auto portamento mode selectable (where legato playing turns on portamento)
portamento controller is selectable (default 65)
programmable aux 1,2,3,4 variable analogue output controllable by any midi controller
2x fully independent clock outputs 5v or 10v selectable
programmable lfo - 9 wave shapes including random
lfo can modulate pitch &/or aux output
separate controllers for lfo to cv and lfo to aux
lfo can be synchronised to midi clock
lfo sync point can be selected
key-on can reset lfo
clock outputs can independently select from 1 to 12, 24, or 48 clocks per quarter note
set-up are stored in non-volatile memory for easy recall
midi monitor mode - for easy midi troubleshooting
midi out/thru socket can be switched to become din sync 24
portamento - new fixed time mode as well as existing fixed rate
auto portamento mode selectable (where legato playing turns on portamento)
lfo sync point can be selected
lfo to cv controller now has min, max and reset values
lfo to aux controller now has min, max and reset values
key-on can reset lfo
all parameters are controllable in real-time by sysex
din sync and clock can be used at the same time as cv and gate outputs

download the manual here.
