back to main kenton page




kenton electronics
usb solo

price : $255.00

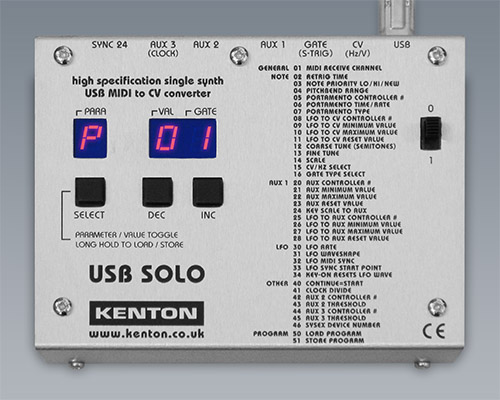

USB Solo

features:
designed to control all types of mono-synth
super-fast response time
famous kenton build quality
rugged brushed aluminium case
cv and aux1 outputs use high specification 16 bit d/a converters for rock-steady pitches
gate / s-trig output configurable output to match virtually any synth
aux2 & aux3 outputs are on-off only (zero or 5v)
dedicated din socket output for sync24
cv/gate/aux1,2,3 outputs on 3.5mm jack sockets (3.5mm to 1/4" cables are available in our cables section)
any midi channel can be selected
switchable for v/oct & hz/v & 1.2v/oct scaling systems
fine tune & scale are software controllable
transpose (coarse tune) - up & down 12 semitones
adjustable pitchbend range
programmable gate v-trig (up to 15v) or s-trig (with or without pull-up)
multiple and single trigger modes - adjustable re-trigger time
note priority selection - newest / lowest / highest
old notes are remembered to facilitate trill effects and increase playability
portamento - fixed rate or fixed time modes
auto portamento mode selectable (where legato playing turns on portamento)
portamento controller is selectable
programmable auxilary outputs controllable by any midi controller
programmable lfo - 9 wave shapes inc. random
lfo can modulate pitch &/or aux output
separate controllers for lfo to cv and lfo to aux
lfo can be synchronised to midi clock
lfo sync point can be selected
key-on can reset lfo
aux3 output can output clock - aux2 can output stop-start
clock output can select from 1 to 12, 24, or 48 clocks per quarter note
all parameters are controllable in real-time by sysex
set-ups are stored in non-volatile memory for easy recall
40 memory locations for store / load
midi monitor mode - for easy midi troubleshooting
usb powered
size 130mm x 97mm x 40mm
suitable for use with xp / vista / mac os-x v10.2 onwards / linux



improvements over pro-solo mkii:
usb connection - faster data transfer
has 40 memories which can be stored and recalled
setups pre-loaded for popular synths
dedicated din sync-24 output
aux 2 & 3 on 3.5mm jacks
variable gate-off time for re-trigger (multiple trigger)
lfo start point can now be selected for sample & hold too
aux 2 & 3 have adjustable threshold
program changes can be used to recall memories
