mordax
data

price : $395.00

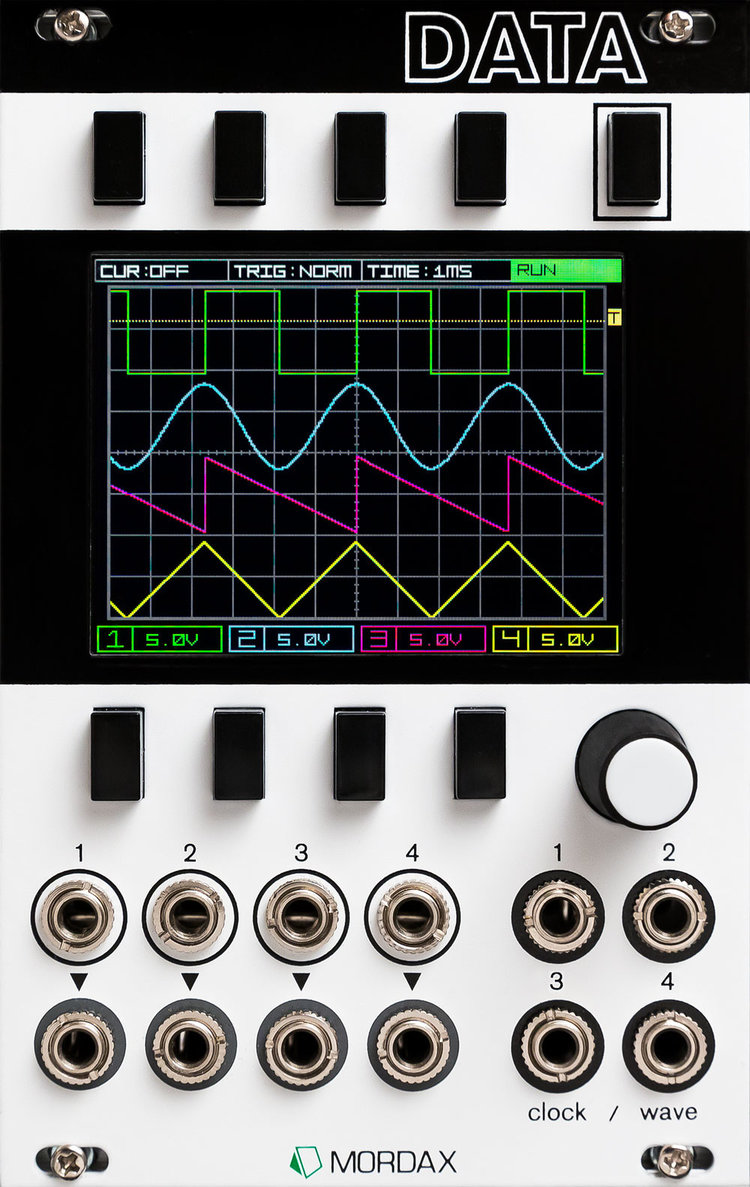

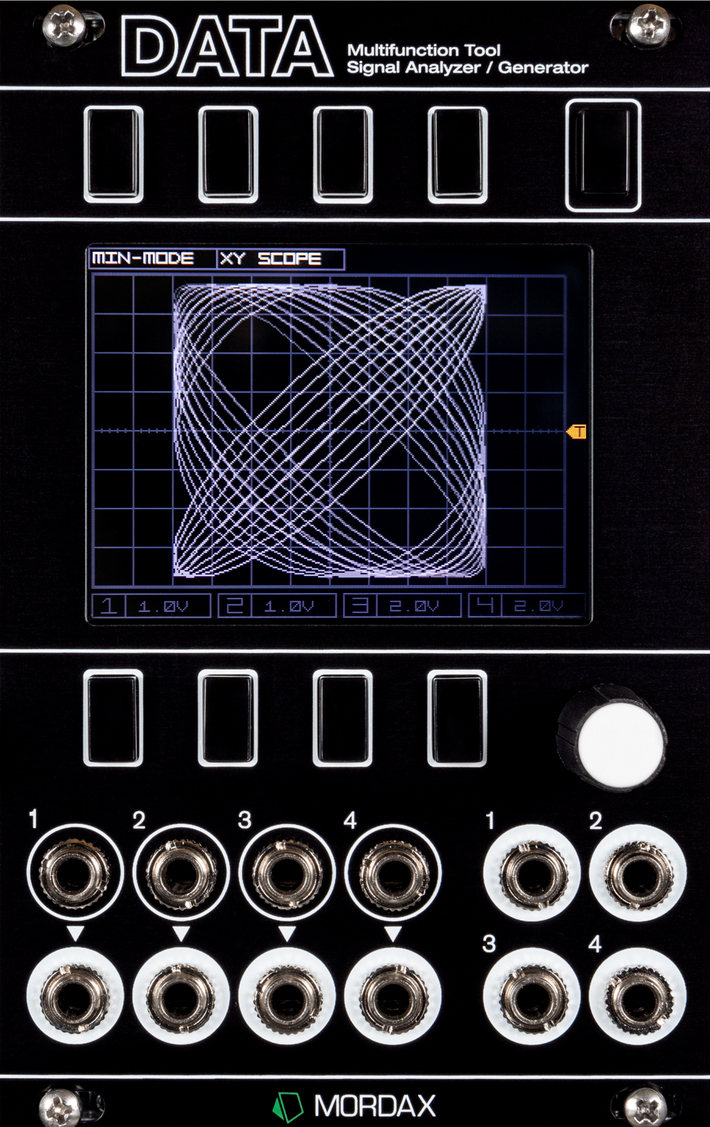

Data

the multifunction tool for eurorack modular systems

specifications:
16 hp (81.28mm width)
35mm approx. depth
powdercoated & silkscreened aluminum faceplate
full color, 2.8" (71mm) display, with crystal clear, scratch resistant window
user upgradable firmware via included microsd card
oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more

input / output:
4 input jacks (±10v range), ac or dc coupled via on-screen control
4 buffered through jacks, one for each input channel
4 output jacks (+10 to -5v range), can be cv, audio, trigger or gate signals

power consumption (average):
~250ma +12v
~60ma -12v
