xlr and ¼" (bal / un-bal) inputs & outputs
dual true bypass instrument (pedal) level fx loops
impedance matching, all analog audio path
series / parallel operation
crossfade function in parallel mode with expression pedal
10db input gain boost / 10db output gain boost
pigtronix 18vdc adapter included
circuit design by howard davis
chassis size = 5.7" x 4.7" x 1.5"

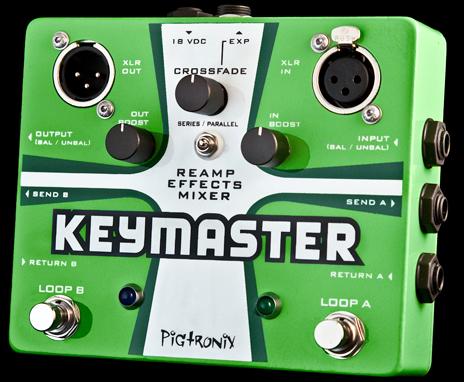

the pigtronix keymaster is a dual, true bypass fx loop pair that can be run in series or parallel. this intuitive, impedance matching device will route any signal into pedals and then back out to any where
else. the keymaster opens up new worlds of tone from the effects pedals you already own.
taking a cue from battle dj's, keymaster lets musicians crossfade between different effects (or entire pedal boards) with a standard expression pedal. the keymaster also allows you to add an expression pedal
controlled blend function to your favorite delay pedal or any other effect. a player can turn effects off gradually this way for smooth transitions.
you can even make your own custom disnortion by blending two crunch pedals together in parallel to achieve the ultimate thick wall of sound without the added noise of running multiple high gain pedals in
in the studio, keymaster provides the ideal re-amp solution for engineers who wish to run a line level signal out of their console, into effects and then into an amplifier or back into the console; all from a
single, easy to use interface sporting xlr as well as 1/4" (balanced or un-ballanced) inputs and outputs.
keymaster is also perfect for vocalists or horn players looking to manipulate effects on stage. instantly blend a clean vocal into any effect by bypassing one of the channels. this is a perfect way to preserve
a clearly discernable vocal while adding a layer of reverb, distortion or modulation effects to your mix.
every once in a while a device comes along that simply and elegantly answers the unmet needs of musicians at every level. whether you are a guitar slinging pedal fiend, a funky horn player or a professional
studio engineer, the keymaster will enable you to create new sounds with the gear you already have.
