back to main strymon page


price : $449.00


inspiration machine.
when we decided to create a studio-class stereo delay effects pedal, we knew we must go well beyond what has been done in the past-in sound quality, sonic flexibility, hardware design, and processing power. we spent months locked up in the strymon sound design labs dreaming up the most spacious, lush, creative, and tweakable delay effects ever heard. it was a monumental task-a relentless study of delays and their nuances, and a continuous pursuit of innovative and musically inspirational sounds. utilizing a ridiculously powerful sharc dsp, every drop of processing power is harnessed.

explore your creativity.
timeline provides you with twelve unique delay machines, each with extensive control over sonic character and feel. go from crisp and clear, studio-quality digital delays all the way to the saturated and fluctuating sounds of tape delay machines. get warm and fuzzy analog style repeats all the way to shimmery, sparkling, and crystalline ice delays. tweak to your hearts content and save up to 200 presets of your favorite sounds. top it all off with full midi implementation and a routable, 30-second stereo looper and you're on your way to delay bliss.

200 built-in presets
are presets your thing? timeline gives you the option to instantly save and recall up to 200 of your own presets. easily bank up or down through your presets using the front panel switches. or select presets externally with a multiswitch or midi controller.
expression pedal control
plug in an expression pedal and control any knob or combination of knobs, all saveable per preset. or plug in an external momentary tap tempo switch for remote control of your tap tempo.

built-in looper
timeline comes with a built-in 30-second stereo looper, routeable pre- or post-delay. record, overdub, play, and stop are right at your feet. record the delay signal to your loop, or route the looper before your delay and saturate your dry loop in echoey goodness. super simple to use and a ton of fun. you can also control the looper with a multiswitch or external midi controller to access reverse, half speed, undo-to-initial-loop, and redo functions.

feedback loop
switch to feedback loop mode and run an external effects pedal in the feedback loop of your timeline.

extensive midi support
have a more complex rig? timeline offers a complete midi implementation to connect to your midi gear. sync your delay time to midi clock. remote control of any knob, parameter, or switch. select your presets via midi. you can even send midi messages to the built-in looper.

sound design
hand crafted, studio-class delay algorithms deliver meticulous, detailed and nuanced delay experiences
twelve delay machines to choose from: digital, dual, pattern, reverse, ice, duck, swell, trem, filter, lo-fi, dtape™, dbucket™.

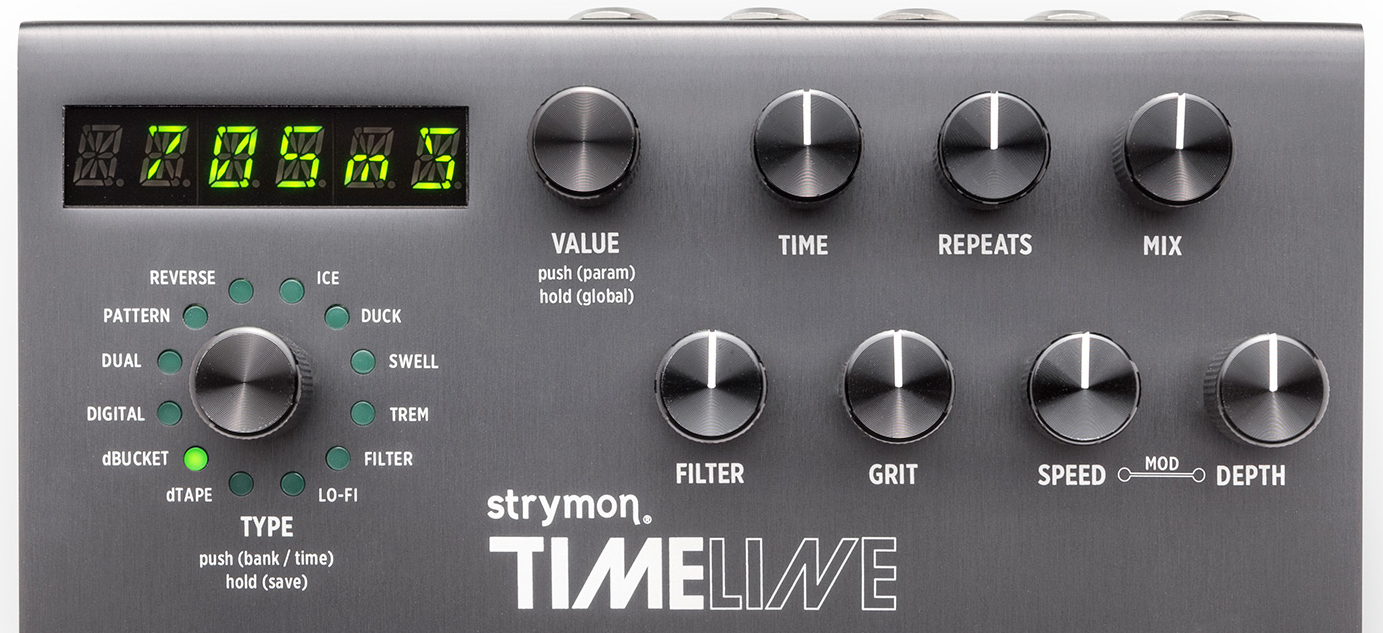

seven front-panel tone shaping knobs: time, repeats, mix, filter, grit, mod speed, mod depth
additional menu-driven parameters deliver extremely flexible tone shaping options and complete tweakability
200 easily accessible and nameable presets, save and recall at the press of a switch

three rugged metal footswitches for preset selection, effect bypass, looper control, and tap tempo
led display for preset info, bpm/time readout, and extended parameter control
multi-color preset leds (green for active preset, amber for edited preset)
full midi implementation allows extended control for those with more complex rigs
30-second stereo looper, routable pre- or post-delay, with midi capability.
sturdy and lightweight gunmetal gray anodized aluminum chassis, with laser-etched artwork
durable black anodized aluminum knobs
studio-grade audio input and output jacks

ins & outs
stereo input and output
expression pedal input with selectable control over knob or combination of knobs, saveable per preset (also configurable as external tap input)
midi input and output
switchable i/o configuration: stereo out or mono with delay feedback loop insert
included 9v center-negative power supply (300ma minimum required)

audio quality
ultra low noise, high performance 24-bit 96khz a/d and d/a converters
115db typical signal to noise
analog dry path for a zero latency dry signal that is never converted to digital
premium analog front end and output section
super high performance dsp in a compact form factor
32-bit floating point processing

true bypass (electromechanical relay switching)
selectable trails mode with high quality, transparent analog buffered bypass, saveable per preset
± 3db boost/cut, saveable per preset
selectable tap subdivision, saveable per preset
optional kill dry mode mutes dry signal, for use in parallel effects loops
optional global tap tempo mode
dimensions: 6.75" (171mm) wide, 5.1" (130mm) deep
designed and built in the usa
