vermona
tai-4 (eurorack)

price : $359.00

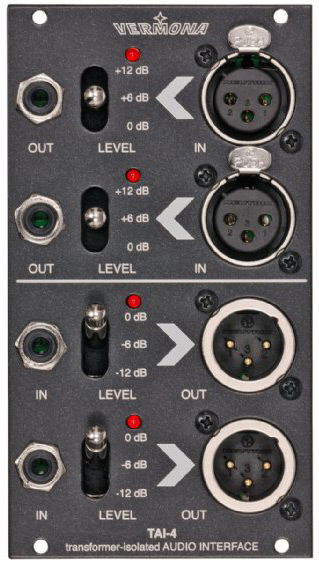

TAI-4: Eurorack

the tai-4 is a 2 x 2 channel audio interface module for balancing signals coming from the modular system and for un-balancing audio signals that are sent to the modular. the module itself is eurorack format.

the tai-4 has isolating transformers and features true balancing.

the upper part of the module consists of two identical channels with balanced xlr (female) connectors as inputs and 3.5mm mono-minijacks as outputs. rocker switches serve for adjusting levels (0db, +6db and +12db). the bottom part has two output channels with 3.5mm minijacks as inputs and xlr-males as outputs, with rocker switches for adjusting levels (-12db, -6db, 0db).

the module requires 14 hp of mounting space.
