back to main vermona page


vermona
twinout

price : $239.00

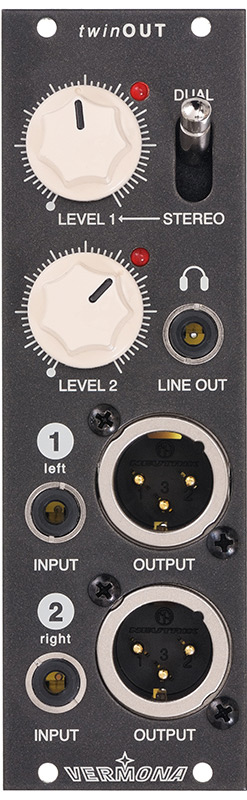

twinOUT

beside spectacular sound-engines and -shapers, conventional and uncommon sources and modulators of control voltages, a modular synthesizer also needs a choice of modules to handle the daily routine. twinout is such a module - the perfect connection to your studio.

this di-box in a module offers two adjustable, electronically balanced xlr-outputs for stereo or independent dual-mono use. an additional headphone output, also suited for line level output completes twinout's feature-set. to bring out the best of your modular synthesizer, there's no getting around the twinout!

just like every vermona module, each twinout is produced in our german "elektroakustische manufaktur".

technical specifications
audio properties
frequency range: 20 hz - 20 khz (±0,2 db)
signal-to-noise ratio: > 90 db
thd+noise: 0,01%

inputs
nominal input level: +6 dbu
max. input level: +24 dbu
input impedance: 100 ko

outputs
max. output level: +24 dbu (xlr)
output impedance: 600 o
amplification: +12 db
clip led
+12 dbu (xlr)
+6 dbu (trs without damper)
-4 dbu (trs with damper)

power consumtion
+12v: 25 ma
-12v: 25 ma

dimensions / weight
width / height: 8 te / 3he
depth: 36 mm
weight: 110 g
