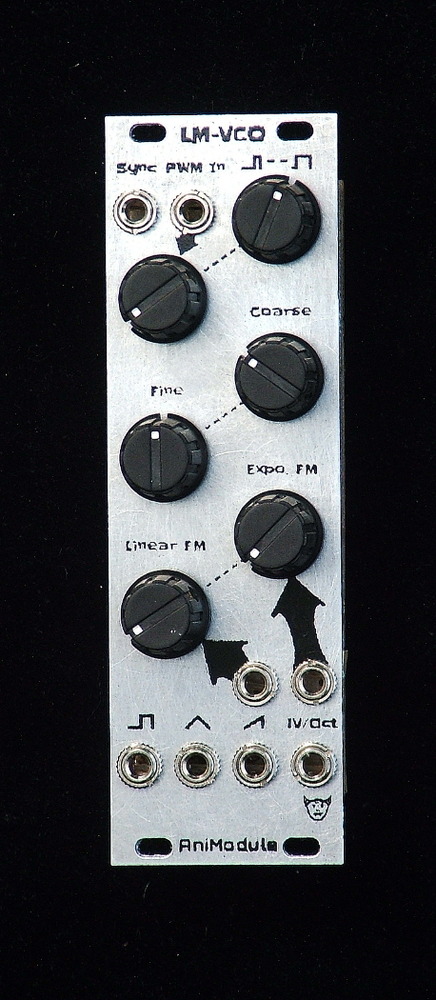

animodule lm-vco
price : $198.00
|
|
at 8hp and 28mm deep this is a frightening little oscillator with monstrous pwm, sick, sick sync, and terrifying fm capabilities!!
specifications:
sync input
linear fm input with attenuating potentiometer
exponential fm input with attenuating potentiometer
pwm input with attenuating potentiometer
pulse width control potentiometer
1v/oct input
triangle, saw and pulse waveform outputs
great 1v/oct tracking
range from below to above the audible
all waveforms respond to your sync input signal
current draw: +12v = 21ma, -12v = -21ma
|
