instruō specialist synthesizers
àradh

price : $389.00

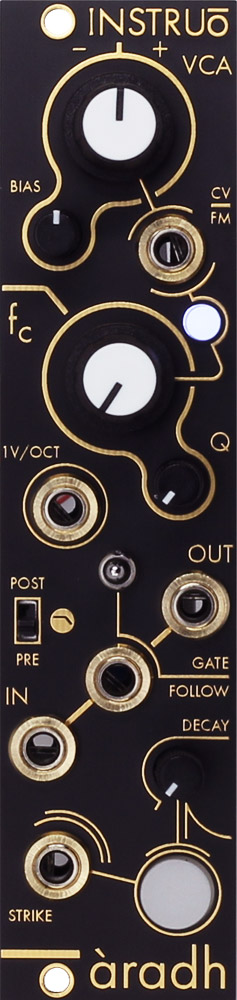

àradh

by popular demand - an exciting new take on the legendary transistor ladder filter. introducing the instruō àradh, the long-awaited successor to the first instruō low pass filter, tràigh. expanding on tràigh's classic functionality, àradh adds a vca with pre or post-filter routing options, an envelope follower, a comparator gate, a strike input with variable decay time, and a plethora of user-definable voltage-controlled parameter combinations.

whether you're looking for voltage-controlled resonance, pre-gain filter saturation, noise gate functionality, dynamics processing, or even an envelope follower, àradh can get the job done - a true sound-shaping powerhouse in only 6 hp.

features:
low pass filter & vca
vca pre/post-filter functionality
strike input & button
user-defined cv input
envelope follower & comparator functionality
self-oscillating resonance

specifications:
6hp
depth: 27mm
+12v: 60ma, -12v: 40ma

download the users manual here and the quickstart guide here.
