our stock of arbhar modules ship with v2 firmware installed and include the new usb expander.

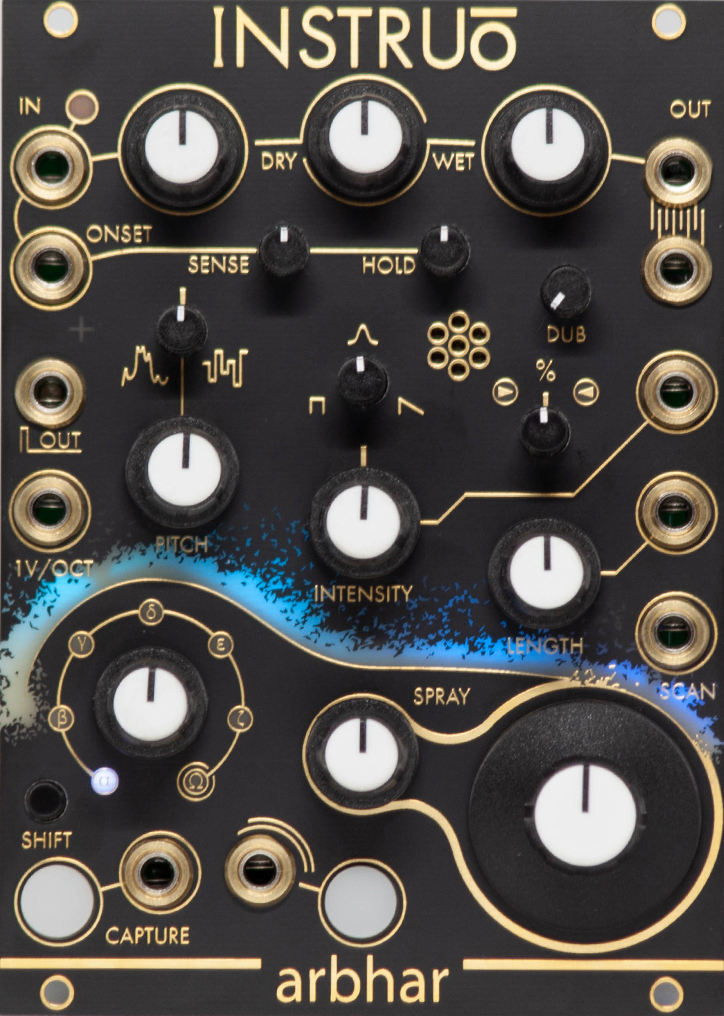

arbhar heralds a new generation of granular processing in eurorack. sampled audio can be chopped into tiny grains, scattered, shaped, re-pitched, reversed, and layered for an endless range of audio
manipulation from seamless frozen tones to mutated acousmatic madness. each grain sounds with its defined specifications. when modulation is used, the "per-grain parameter" definition allows for true
polyphonic layering.
featuring a condenser microphone set into the front panel, built-in audio analysis for automatic sampling, and internal modulation over various parameters; this is truly a granulator like no other.
introducing the world for the first time to the dr lexer methodology of granular processing.
it is as the old saying goes... "nicht verzagen, lexer fragen".
features:
granular processor (lexer method)
two granular engines available simultaneously:
1. controlled by intensity and grain length settings (up to 24 grains)
2. externally triggered grains (up to 20 grains)
manual and automatic playhead control for granular textures and time stretched audio playback (scan/follow mode)
sampling wavetable oscillator
6 sample buffers (10 second record time each)
built in condenser microphone
dedicated analogue input pre-amplifier
audio onset analysis for automatic capture control
led display for amplitude, length, scan, spray
trigger out
forward/reverse grain playback probability control
internal random/quantised pitch modulation
1v/oct cv pitch control
dynamic grain windowing
specifications:
18 hp
depth: 42mm
+12v: 210ma, -12v: 30
download the user manual here and the quickstart guide here.
