back to main instruo page


Analog: NoDigital: NoHybrid: NoSampler: No

Arpreggiator: NoSequencer: NoVocoder: NoFX: NoDrums: NoHD Recording: No

Polyphonic: NoMulti-Timbral: No

MIDI: NoCV: No

Module: YesKeyboard: NoRackmount: NoTabletop: No

Audio Demo: YesPDF Manual: Yes

instruō specialist synthesizers
 lĺon: matrix mixer

price : $339.00

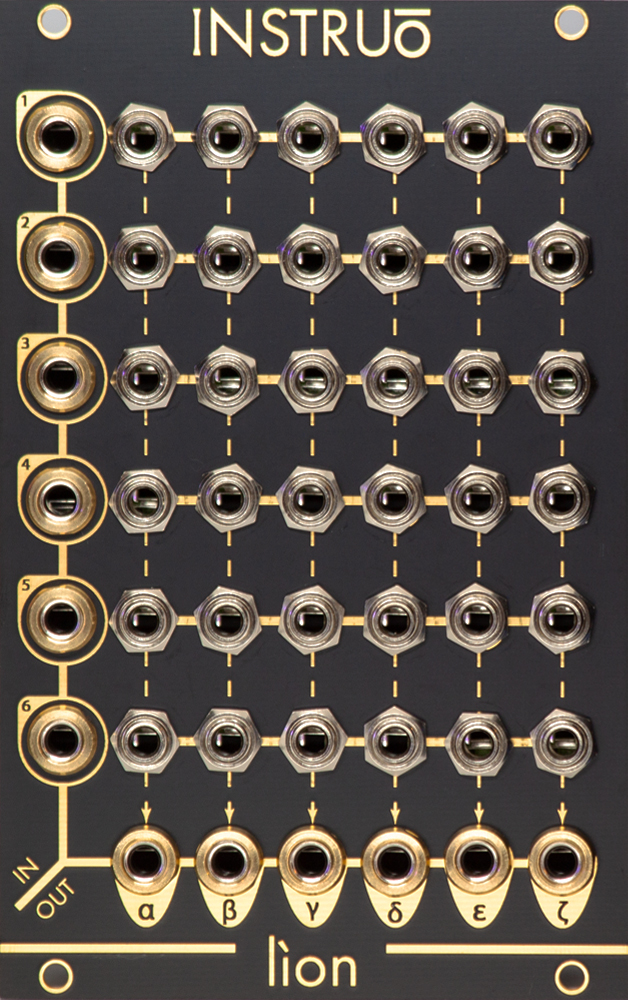

lĺon

the instruō lĺon is a 6x6 matrix mixer with a pin style interface similar to those found on iconic modular synthesizers of the 1970s. its applications range from signal routing and effect insert functionality to true summing with cascaded attenuation capabilities.

live patching made easy with the use of the included pin and insert cables.

need to patch to a new destination? simply pin your patch on the fly.

centralise your i/o network with lĺon.

features:
6x6 pin-style matrix mixer
send & return insert capabilities
true summing
passive multiple functionality
cascaded attenuation through channels 3-6
includes 10 pin cables
includes 2 insert cables (black = send, gold = return)

specifications:
16hp
depth: 27mm
+12v: 30ma, -12v: 30ma

download the users manual here.
