instruō specialist synthesizers
lúbadh v2.0 tape emulator/looper

price : $675.00

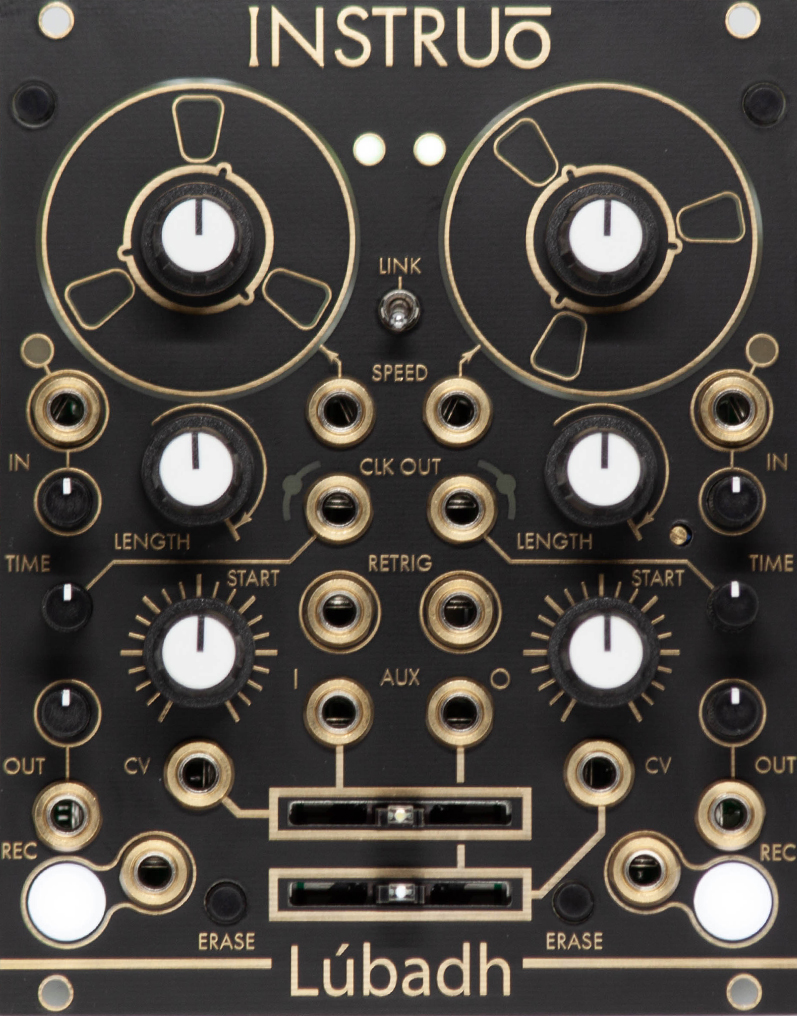

lúbadh V2.0 Tape Emulator/Looper

consisting of two identical channels lúbadh allows you to instantly record, playback, overdub, trim down, scan through and pitch up or down any audio signal.

inspired by the aesthetics and mechanics of early tape techniques each channel features an analogue input circuit which adds slight compression, filtering and saturation. on the first recording, the sound may appear slightly fuller and warmer, re-recording audio back and forth will compound this effect over time allowing you to create dense tape like textures.

features:
2 channel looper
tape response inspired analogue input circuit
led display for playback speed, length and position
nine minutes record time per channel (more than 450 feet of tape at 15ips)
varispeed ± 4x speed
link switch for dual mono functionality
delay capabilities
clock divider output
vca controlled auxiliary input/output crossfading
looping or one-shot record and playback capabilities
load/save functionality
capacitive touch plate for creating warble effects and stalling playhead
included 2hp cv expander for cv over everything

specifications:
20hp
depth: 42mm
+12v: 250ma, -12v: 100ma

download the users manual here and the quickstart guide here.
