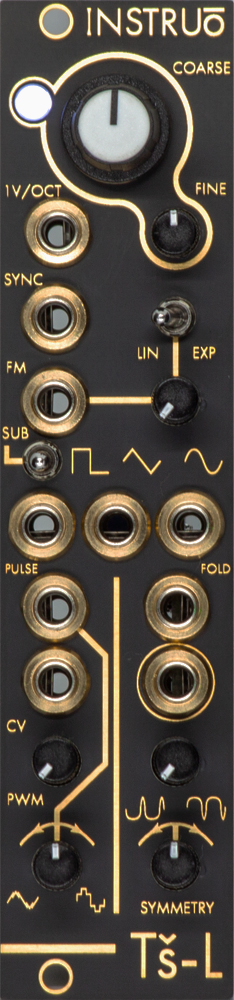

the instruō tš-l is a fully analogue voltage controlled oscillator with a plethora of features in a very small footprint.
its triangle core circuitry allows for extremely consistent waveforms over a wide frequency range. the triangle foundation is used to generate its sine waveform which holds consistent shape and amplitude
across the tš-l's wide range. the outputs consist of simultaneous square/sub, triangle, and sine waveforms, with additional voltage controllable wavefolder and complex pwm waveshaper.
tš-l includes every feature needed to powerfully perform as a rich, ultra compact audio source, as well as functioning equally as a versatile modulation source.
features:
triangle core analogue oscillator
1v/octave, coarse and fine pitch controls
oscillator soft sync
fm input with attenuator with selectable linear or exponential ranges
sine
triangle
subsquare (1 or 2 octaves below fundamental)
pwm - variable split triangle/double pulse square, cv controllable
wavefolder with symmetry control and cv over fold depth
specifications:
6 hp
depth: 42mm
+12v: 60ma, -12v: 40ma
