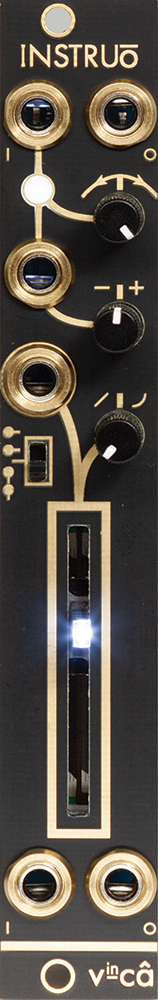

instruō specialist synthesizers vincâ: dual vca price : $235.00

vⁱⁿcâ is a two channel voltage controlled amplifier with both parallel and series routing capabilities. each vca has a different architecture allowing them to offer unique functionality that both contrasts and compliments one another.

the top vca has input bias and input attenuverter controls over its four-quadrant multiplication capabilities.

the bottom vca has an amplitude control that also acts as a cv attenuator when control voltage is applied. the bottom vca also includes a shape control that morphs between linear and exponential response curves. each channel can be used independently (in parallel) or can be cascaded (in series), by flipping the mode switch.

chain one vⁱⁿcâ to another (and another, and another!) to add mixing and routing schemes dispersed throughout your entire system.

features:
dual spdt switch
momentary or latching control via button/external gate
manual output gate capabilities
audio rate switching
ultra low on resistance (~30ω)

specifications:
4hp
depth: 42mm
+12v: 30ma, -12v: 30ma

download the users manual here and the quickstart guide here.
