meris
ottobit jr.

price : $299.00

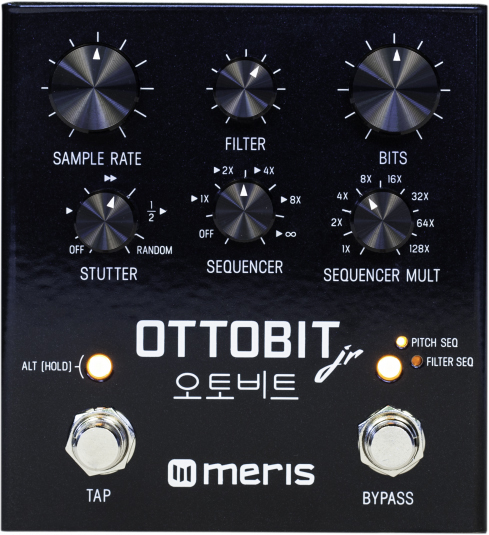

Ottobit Jr.

to call it a bitcrusher would be an insult. the triggered stutter and pitch/filter/crush sequencers take you to side scrolling, coin collecting maze worlds. add in a resonant low pass that competes with the best analog synths and grandpa sid would be proud.

features:
handcrafted algorithms
variable sample rate and bit crushing
vintage synth inspired low-pass filter
triggered stutter effects
sequencer module for pitch, filter or decimation pattern sequencing
tap tempo for sequencer and stutter
stereo input and output
switchable input/output headroom level for guitar, synthesizer or line levels
expression pedal control over all parameters simultaneously
presets available via external 4-preset switch or midi
midi in/out over trs via the exp jack
remote tap tempo switch capable via the exp jack
premium analog signal path and 24-bit ad/da w/32 bit floating point dsp
premium analog devices jfet input section
color - glossy black with subtle flake
designed and built in los angeles, california u.s.a.

specifications:
premium quality 24 bit a/d and d/a
32 bit floating point dsp hardware
premium low noise analog signal path throughout
analog devices jfet input circuitry
selectable true bypass (relay) or analog buffered bypass
durable black powder coat with fine metal flake
current draw < 150 ma
dimensions - 4.25" wide, 4.5" long, 2" tall

download the user manual here.
