endorphin.es
blck_noir

price : $599.00

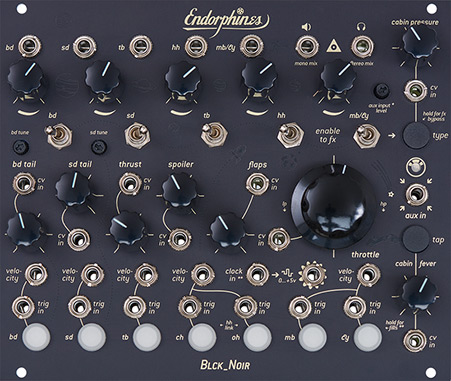

BLCK_Noir

the blk_noir is a 7-voice analog drum synthesizer in eurorack modular format. though it uses roland's cr-78 as a point of departure, blk_noir is inherently darker, harsher, and deeper. its discrete analog circuits are blended with unhealthy doses of spectral animation and digital noise, adding to its brooding character. its voices consist of kick, snare, closed and open hats, tambourine, cymbals, and a metallic membrane. kick, snare, and tambourine voices enjoy their own dedicated outputs, while open/closed hi-hats are summed through their own output alongside a cymbal/membrane output. there's also a summed master stereo output, which houses a resonance filter for a little extra flavor. additionally, the module boasts an effects processor with 8 wicked algorithms for advanced sonic depravity. combined, these features make blck_noir one of the most formidable percussion modules in all of eurorack. while it is suitable for dark techno and ebm, its comprehensive capabilities and inherent open-endedness mean it can easily find its way into any electronic music genre.

features:
30 hp/te width under a black panel, <¾" in depth
7 drum voices in the analog kit: bass drum, snare, tambourine, closed and open hi-hats, metal beat and cymbal
hybrid sound generation: band-limited digital noise with spectrum animation, injected into analog circuits
full discrete analog generation part, using inductor coils instead of op-amps
on-board effect processor with drum-oriented 8 effects with additional auxiliary input and firmware update over audio
drums that have character: fit all styles of music - specifically tuned for darkwave and techno
separate analog outputs and isolator-style resonance filter for main mix outputs

specifications:
width: 30hp
depth: 20mm
current draw: 240 ma @ +12v, 75ma @ -12v, 0 ma @ 5v

download the manual here.
