discover why top artists and producers have chosen eventide for over 50 years with the h90 harmonizer®, eventide's next-generation multi-effects pedal. whether you want high-quality bread-and-butter effects or experimental sounds unheard, the h90 has
everything you need to inspire your creativity with an intuitive ui designed with players in mind, 62 effect algorithms, and hundreds of program combinations curated for a variety of instruments and genres. with its comprehensive i/o and flexible routing
options, the h90 is designed to be the heart of your rig.

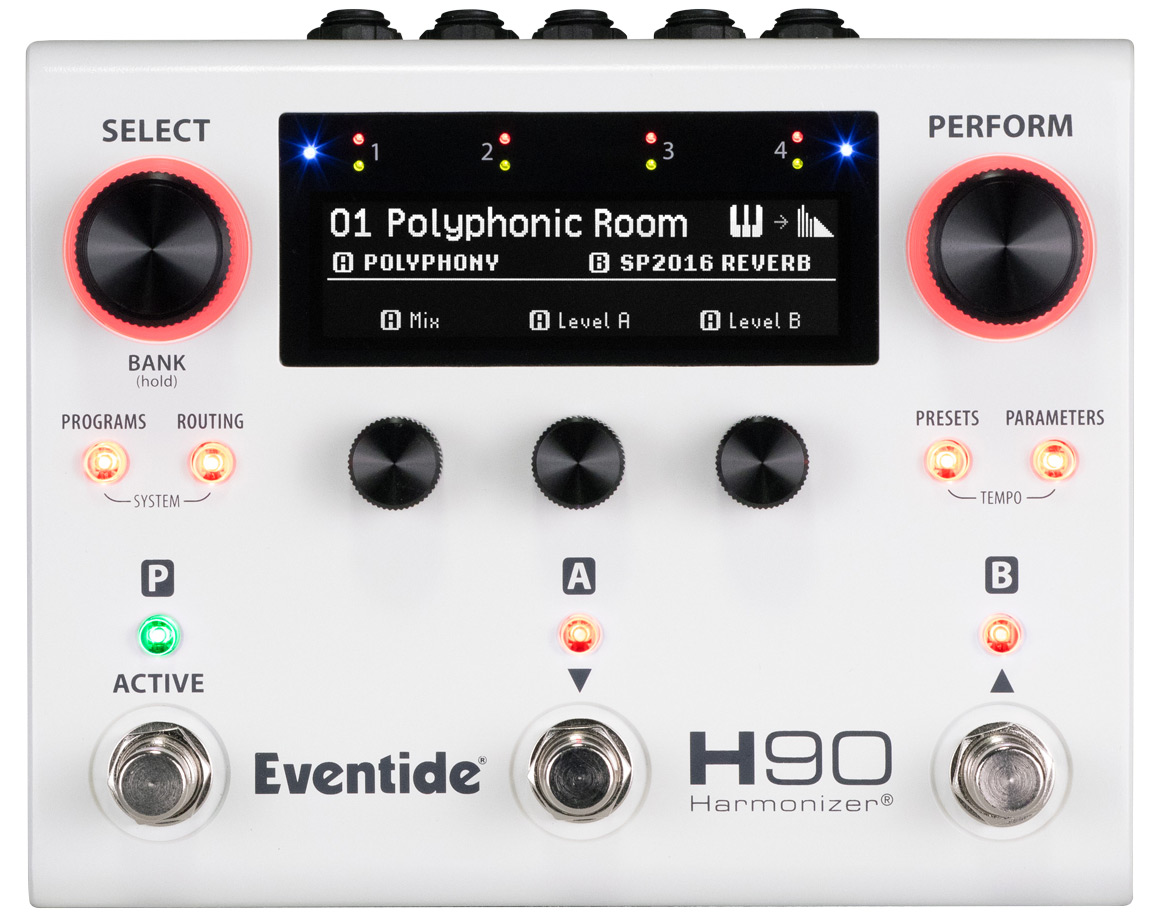

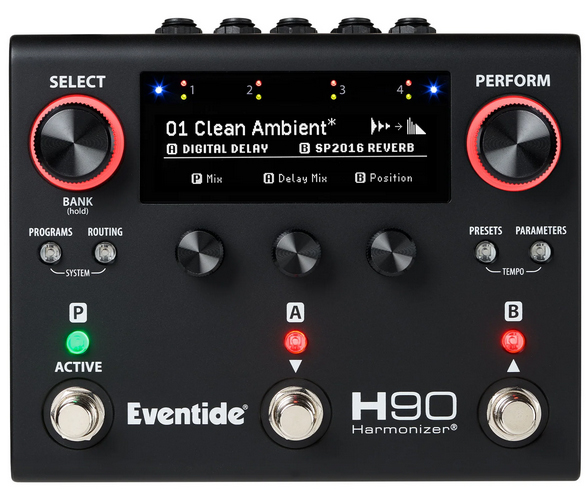

eventide's h90 harmonizer re-defines the sonic possibilities of a multi-effects pedal, seamlessly merging the studio-level versatility of eventide's flagship h9000 rack unit with the streamlined form factor of the h9 max pedal. the h90 harmonizer starts
with all of the 52 algorithms found in the h9 max pedal - all derived from the same arm-based architecture found on the h9000 - then tops off this formidable foundation with 10 all-new algorithms for even greater versatility. beyond that, the h90 boasts a
significantly expanded control set compared to the h9 max's single-knob setup: five push knobs; seven led buttons; a trio of footswitches; and a high-resolution oled display are designed to allow for instant mid-song adjustments without compromising on the
harmonizer series' deep editing options, further enhanced via the h90 control software. true to its rack unit heritage, the h90 is finished off with a massive level of i/o configuration options, including midi in/out/thru, two expression pedal inputs, and
usb functionality to personalize and tweak your setup.
features
preloaded with 62 effect algorithms:
10 new effect algorithms: polyphony, prism shift, bouquet delay, head space, weedwacker, even-vibe, wormhole, instant flanger, instant phaser, and sp2016 reverb
includes all 52 effect algorithms from the h9 max harmonizer with enhanced features and improvements
new low-latency polyphonic pitch shifting with sift (spectral instantaneous frequency tracking) technology
arm-based architecture lays the foundation for new and exciting creative effects
use two algorithms at once per program
true spillover between programs
route effects in series or parallel
instrument or line-level operation
two mono inserts or one stereo insert can be positioned anywhere in the signal chain
dual-mode for processing two independent stereo signals at once
five push-turn knobs for more tactile control
two expression inputs for pedals, up to 3-button auxiliary switches, and cv signals
use h90 control software to edit programs, create lists, and update firmware on a mac or pc
built-in tuner
specifications: connectors:
inputs 1-4: ¼ inch ts mono jack
outputs 1-4: ¼ inch ts mono jack
exp/ctl 1-2: ¼ inch trs / expression pedal or aux switch
usb type-c: use usb 2.0 for control, updates, and midi
midi in: five-pin din (female)
midi out/thru: five-pin din (female)
dc input jack: 5.5/2.5mm plug / center positive (+)
other:
power: 12v dc @ 1a / center positive (+), 5.5/2.5mm jack
dimensions (product): english: 6.5" (w) x 5.25" (d) x 2.5" (h); metric: 170 (w) x 136 (d) x 68 (h) mm
dimensions (package): english: 10.5" (w) x 7" (d) x 3" (h); metric: 265 (w) x 180 (d) x 75 (h) mm
weight (product): 1.85 lbs / 0.84 kg
weight (package): 3 lbs / 1.36 kg
shipping contents: h90, eventide sticker, 4x rubber feet, guitar pick, universal power supply with plugs (us, uk, eu, aus), usb a to type-c cable, quick reference guide
