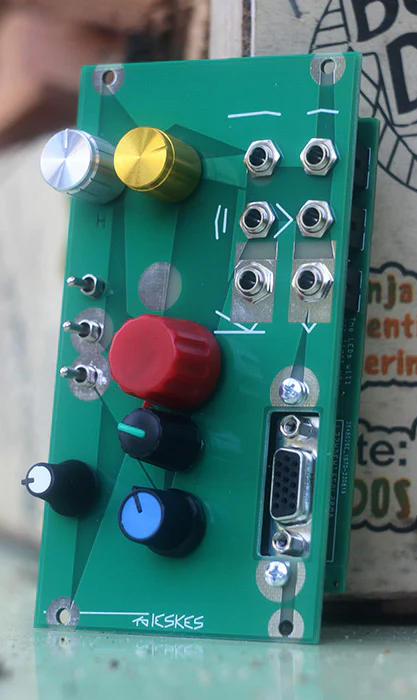

gieskes oscillatoscope2e (with databend front panel)
price : $219.00
it can convert cv and audio signals into video and audio. it works by changing the frequency of oscillators that are synced to a vga sync generator. the signal that is generated is output as audio on a mini jack connector, and as video on the vga
connector.
features:
connection inputs:
cv in for r,g,b pitch (starve)
high gain audio in for r,g,b pitch (starve)
cv in for sync horizontal
cv in for sync vertical
power in +)- 9v dc 600ma (it uses 70ma)
outputs:
audio out
vertical sync out
vga out 640x480 60hz (actual resolution is that of the screen itself, because it is a analog signal)
controls pots:
r,g,b pitch (starve)
r pitch
g pitch
b pitch
sync horizontal
sync vertical switches:
r horizontal/vertical
g horizontal/vertical
b horizontal/vertical
