hexinverter.net

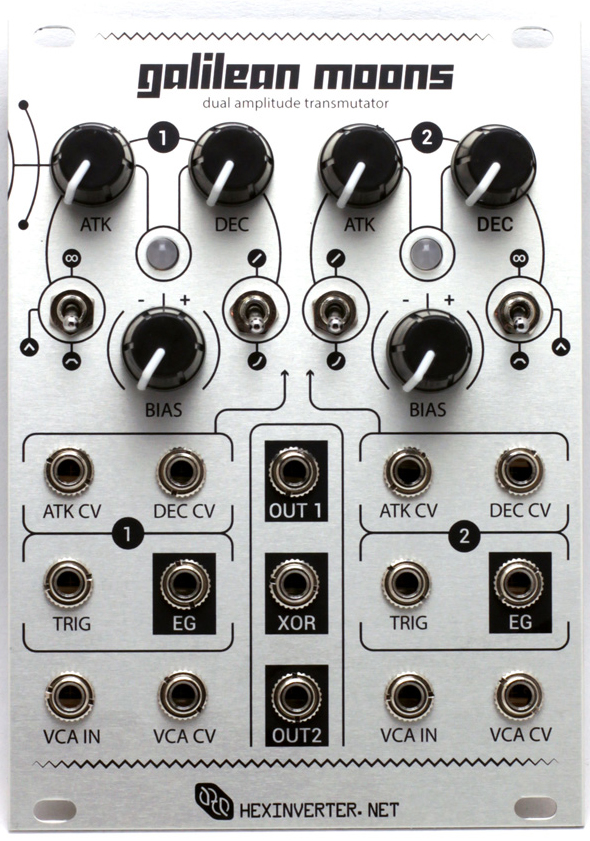

galilean moons

price : $299.00



galilean moons is a dual amplitude transmutator. it transmutates the amplitude of incoming signals through the use of voltage controlled envelopes and vcas. it is designed primarily to create voltage controlled percussive sounds when fed with a sound source (in particular, its sister module, jupiter storm), but can be used for all sorts of other tasks in your modular system as well as to generate typical synth sounds.

galilean moons features two "moons". each moon is composed of a voltage controlled attack/decay envelope with its own dedicated low-distortion linear vca. each envelope can also act as attack/sustain/release or can go into lfo/automatic looping mode with the flick of a switch.

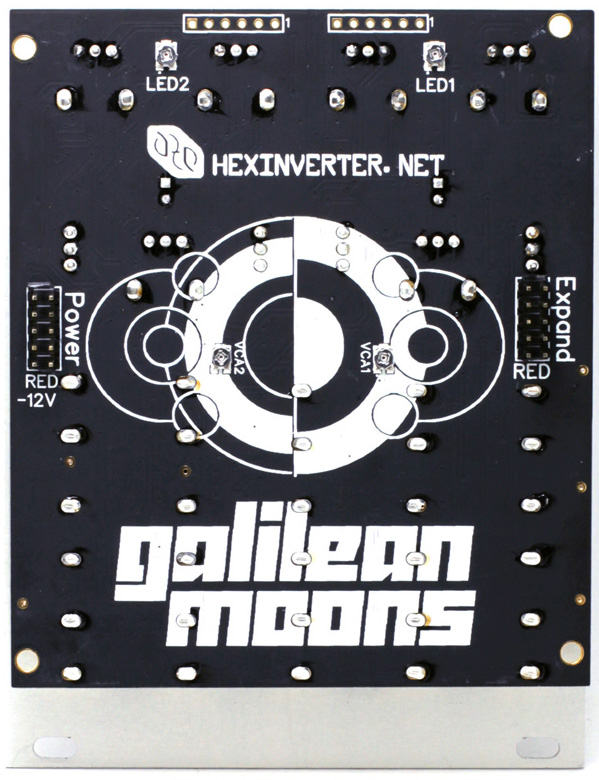

galilean moons will normalise its vca inputs to a jupiter storm cosmic noise oscillator through a simple expansion cable at the back, but it can also function standalone in any modular system. of course, the new jupiter storm noise output, "xor", which is activated by connecting a galilean moons to your jupiter storm, will not function when you use galilean moons alone in a system. this is the only feature which requires a jupiter storm to be connected.

the xor noise output sounds similar to (but not exactly like) jupiter storm with the noise core disruptor is engaged, even when it is not engaged. this allows you to get both flavours of noise from jupiter storm simultaneously, making it a lot more versatile.

the vcas and voltage controlled envelopes can each be used on their own in your system when you don't want to use them the way they are internally linked together. plugging a signal into any of the respective jacks will break the internal connections and let you use the components on their own. you can use the linear, dc-coupled vcas to control dc signals in your system when not using the module for its intended use, for example.



features:
two voltage controlled digital functions (envelopes), each normalised to their own low-distortion linear, dc-coupled voltage controlled amplifier

each envelope offers percussive attack/decay, attack/sustain/release or looping (lfo) mode

envelopes can each be linear or exponential

enables a new noise output, "xor", if plugged into a jupiter storm behind the panel. (everything besides the xor output works with or without a jupiter storm!)

vca inputs are normalised to the newly-enabled xor and main ("i") output of jupiter storm when nothing else is plugged in

the envelopes and vcas can be fully utilised elsewhere in your system by plugging into the corresponding function's jacks

perfect for synthesizing voltage controlled percussion and other effects!

technical details:
18hp
requires ~+88ma, -65ma @ 12v
30mm deep (skiff friendly)
