back to main meris page


meris
hedra: 3-voice rhythmic pitch shifter

price : $299.00

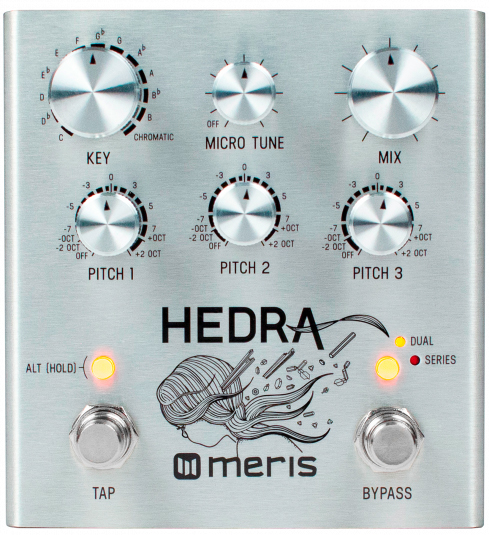

Hedra: 3-Voice Rhythmic Pitch Shifter

plug in to hedra to expand your melody palette and unfold your landscape. 3 voices, in rhythm combine with your original voice to create angelic harmonies. each voice can be delayed and fed back in 4 intricate matrices for either predictable or unpredictable results. explore endless creative avenues with pitch corrective locking and glide modes, either smooth or hard stepped. add sonic unease and texture by micro tuning each voice.

features:
selectable pitch correction types to revoice your melodies in realtime
individual controls for pitch and time offset for each voice (3 voices total)
micro tune control creates gentle chorus-like detuning, classic studio fattening, and extreme warping
chromatic or key driven harmony with selectable scale types
4 delay configurations with unique feedback routing (520 ms max delay time)
unique keyboard control putting a live quartet under your fingertips
our original glide mode slides between pitches at the speed you choose
choice to sweep through intervals smoothly or hard step for dramatic pitch effects
switchable half speed and auto swell for advanced textures
digitally controlled analog mix control
stereo input and output
switchable input / output headroom level for guitar or synth / line level
expression pedal control over all parameters simultaneously
presets available via external 4-preset switch or midi
midi in/out over trs via the exp jack
external tap tempo over trs
midi beat clock synchronization
premium analog signal path and 24-bit ad/da w/32 bit floating point dsp
premium analog devices jfet input section
color - raw brushed aluminum with clear coat
designed and built in los angeles, california u.s.a.

specifications:
premium quality 24 bit a/d and d/a
32 bit floating point dsp hardware
premium low noise analog signal path throughout
digitally controlled analog dry path for wet/dry mix
analog devices jfet input circuitry
selectable true bypass (relay) or analog buffered bypass
durable transparent coated brushed aluminum
current draw < 150 ma
dimensions - 4.25" wide, 4.5" long, 2" tall

download the user manual here.
