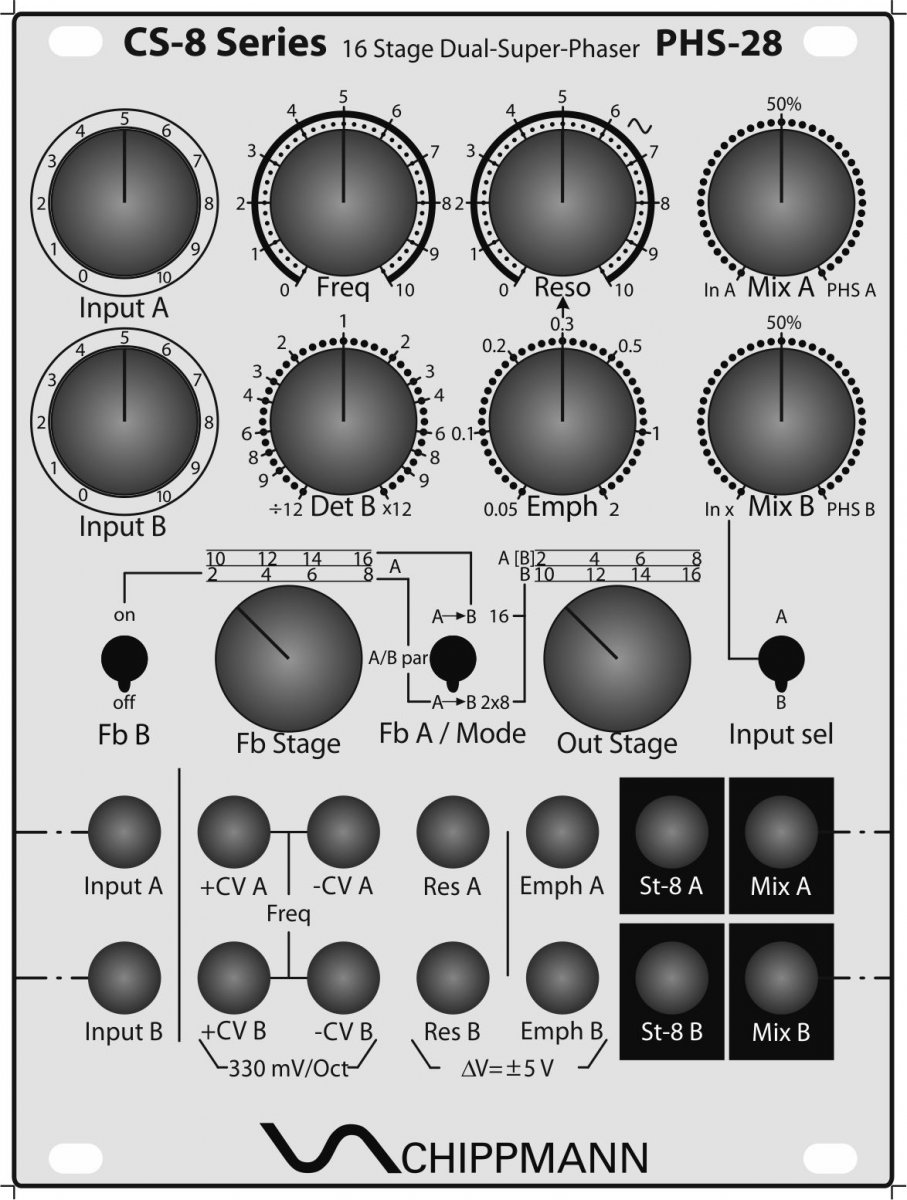

the phs-28 is a very versatile and fully analogue voltage-controlled 2 channel phaser (phase shifter) with 8 stages per channel. the channels are cascadable to a true 16 stage phaser
with a feedback loop overall 16 stages by one switching click. very deep and impressive phasing effects are possible with that. the stage for the feedback as well as for the output stage
are selectable fully independently.
schippmann thinks that the phs-28 convinces with an unbelievable, warm forceful sound- it would have almost bitten their head off! the module is designed with a width of 19 pu (part units, 1 pu=5.08mm) for installationinto a 3 hu (height units)
modular rack with a built in ±12 v power supply. furthermore the module is equipped with lots of cv (control voltage) inputs for phase frequency (freq), resonance (reso) and emphasize(emph), separately for each channel so that true and
independent dual audio operation is possible.
design and implementation meet the highest technical standards concerning usability, sound quality, and electromagnetic immunity. the entire design and production work was done in germany.
