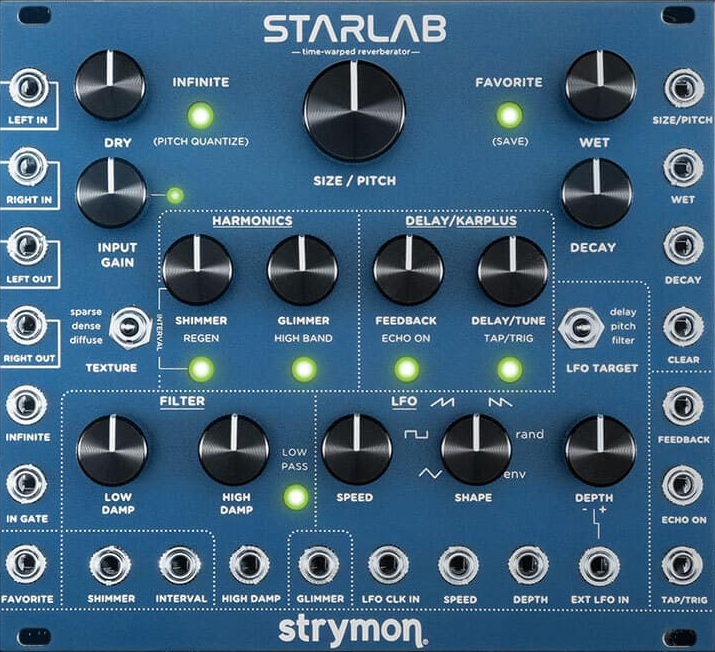

modular transformation machine.
expand the sound of your modular rack with incredibly lush, ethereal reverbs. enhance signals with gorgeous chorus, flanging, and modulated delays. create uniquely expressive synth voices with karplus-strong string synthesis. turn simple mono audio signals
into vast stereo soundscapes. starlab is a single module that will completely transform your modular rack.
singular modular reverb.
from perfectly voiced room ambience to vast, immersive, nearly infinite decays, starlab offers the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. add musical intervals to the reverb signal with shimmer, and enhance the harmonic
spectrum with glimmer, while enjoying real-time control over the size/pitch of the reverb process.
modulation and delay effects.
starlab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. this results in the ability to create rich choruses, sweeping flanger effects, and
beautiful modulated delays, while also processing signal through the reverb.
karplus-strong string synthesis.
in addition to input signal processing, starlab is a powerful karplus-strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. this results in an astoundingly expressive and lifelike instrument
with a unique voice all its own, which can be enhanced and expanded by the full range of starlab's reverb capabilities.
intuitive creation station
from patch creation to live performance, starlab's powerful features are easily accessible at the turn of a knob or the touch of a button. with no menus to wade through, starlab's interface is designed for intuitive hands-on sonic exploration, while every
function and control works together to respond musically and smoothly.
specifications: sound design
three selectable reverb types for a wide variety of ambient textures
delay/karplus section with feedback
delay assignable to output for mod/verb and delay/verb effects
four-octave karplus-strong string synthesis mode with damping control for string/verb full voice capability
lfo section with various waveforms to modulate delay time, reverb size, or tone filters
filter section to sculpt the high and low eq of the reverb and delay/karplus section
harmonics section to enhance the aural spectrum of the reverb
adjustable shimmer for adding pitch shifting of up to +/- 1 octave to the reverb
glimmer for dynamic enhancement of harmonics
adjustable reverb core size to increase or decrease the space for reflections, allowing for pitch control of the regenerating reverb content
4-pole 24db/octave variable resonance low pass filter
infinite freezes the input audio prior to the reverb tank
independent wet and dry level controls
ins, outs and switches
stereo inputs and outputs
extensive cv control of parameters
access to four presets from the front panel
usb jack (located on the rear) for performing firmware updates
audio quality
analog dry path for a zero latency dry signal that is never converted to digital
ultra low noise, high performance 24-bit 96khz a/d and d/a converters provide uncompromising audio quality
super high performance arm dsp
32-bit floating point processing
dimensions and power
rack width: 28hp
rack depth: 41mm, 1.61"
+12v rail: 210ma
-12v rail: 210ma
+5v rail: 0ma
designed and built in the usa
