zuma r300

price : $199.00

Zuma R300

high horsepower, low profile.
zuma r300 is the highest horsepower, most technologically advanced low profile effects pedal power supply. you get clean, rock-steady power for your 9v, 12v and 18v effects pedals in a pedalboard friendly, expandable package, giving you room to grow. zuma r300's ultra-low profile design means that it can fit under just about any pedalboard. dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

dual isolation.
zuma r300's all analog circuitry offers two stages of isolation. each of the five output channels is individually isolated from the 24v dc, and the 24v dc is isolated from the ac input power, eliminating ground loop and ac line noise issues. zuma r300 also provides dual power regulation: wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.

ultra-low profile.
zuma r300's ultra-low profile design means that it can fit under just about any pedalboard. with built in threaded hardware, mounting to your board is simple.

never run out of outputs.
is your pedalboard growing? add more outputs to your zuma r300 by connecting a strymon ojai or ojai r30 (sold separately) with the 24v out jack. zuma r300 is part of a truly expandable, modular power distribution system that can grow with your pedalboard.

hear your pedals, not your power.
many popular guitar pedals were originally designed to work with batteries. since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies. our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.

12v and 18v options.
do you have a pedal that requires 12v or 18v? zuma r300 has you covered. one channel has selectable 9, 12, or 18v output voltages. some analog pedals designed for 9v operation may provide higher output and/or more clean headroom when run at higher voltages such as 12v or 18v. however, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!

world tour ready
playing gigs all around the world? no need to purchase separate power supplies for your international tour. zuma r300 has automatic worldwide power compatibility built-in (when connected with the appropriate iec cable). whether you're on 120v, 240v, 100v, or any variation in between, zuma r300 will deliver clean, reliable power to your pedals, even if the venue has dirty power.

energy efficient.
don't let the blue chassis fool you: zuma r300 is green at heart. significantly more efficient than linear power supplies, zuma r300 is able to deliver substantially more current while handling a much wider range of input voltages. the high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

pedalboard friendly
zuma r300's ultra-low profile design means that it can fit under just about any pedalboard. it also features built in threaded hardware for easy mounting.

ins & outs

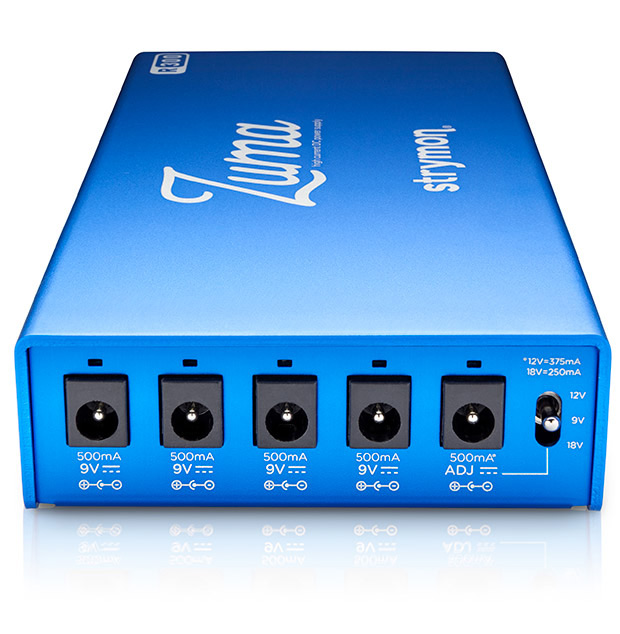

5 high-current, fully isolated outputs with center-negative polarity: 4 dedicated 9v outputs (500ma), 1 adjustable output offers 9v (500ma), 12v (375ma), or 18v (250ma) dc options
500ma per 9v output powers nearly any pedal
delivers a maximum of 36w
5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18" length)
iec cable included
24v thru jack allows connection to strymon ojai or ojai r30 (sold separately)

five individual custom transformers (one per channel) deliver clean, consistent power
worldwide power compatibility ensures no-hassle international touring
energy efficient, compact design

lightweight and rugged anodized midnight blue aluminum chassis
ultra low profile fits under nearly any pedalboard
designed and built in the usa
dimensions: 7.25" x 3.5" x 1.18" (184mm x 88mm x 30mm)
weight: 0.9 lbs. (400g)
