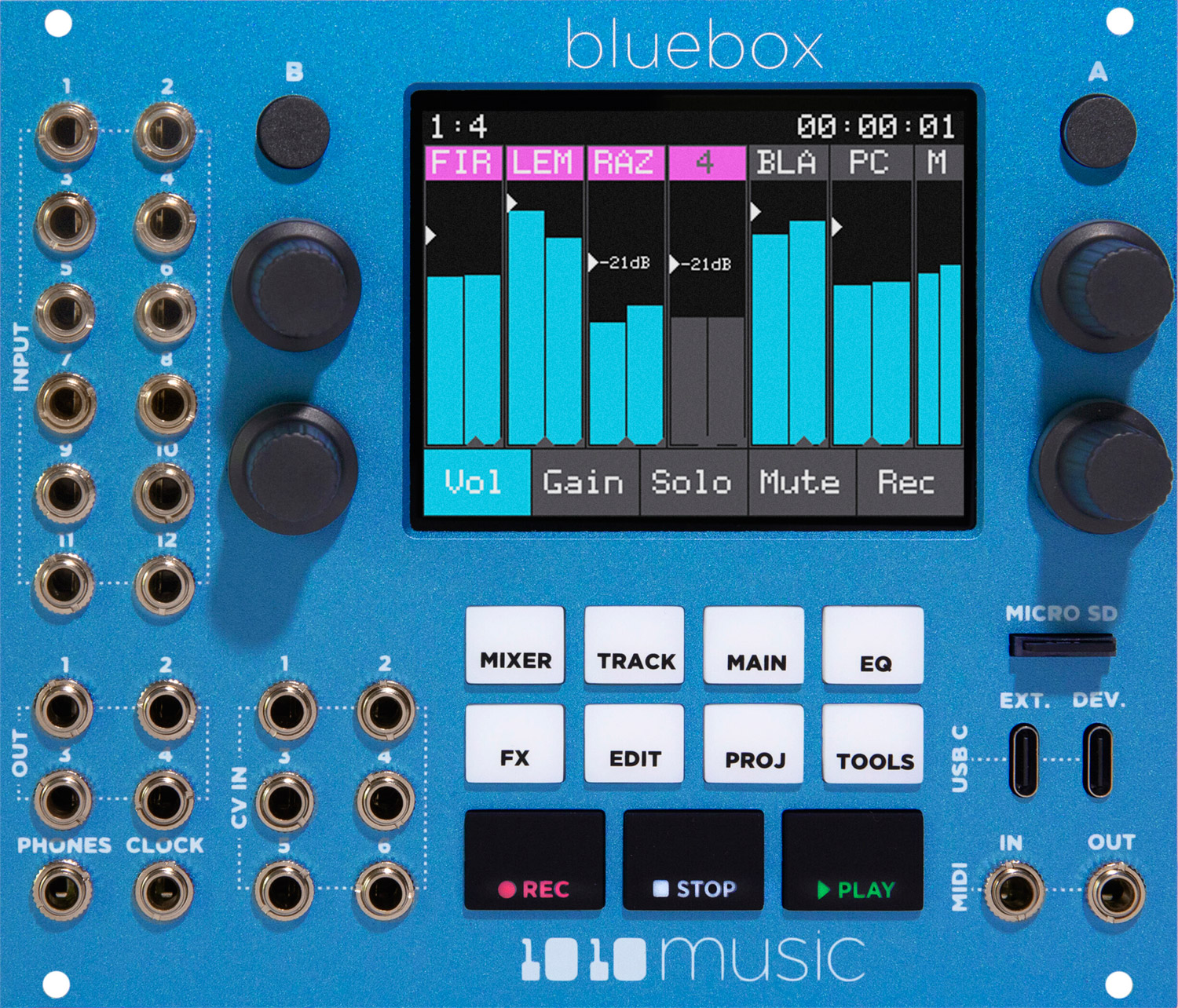

1010 music bluebox eurorack edition: compact digital mixer price : $699.00

the bluebox eurorack edition is the elegant way to get high-quality mixing, effects and integrated recording and playback all in one super-optimized 30 hp form factor. like all 1010music products, it uses a touchscreen with knobs to let you quickly control volume, gain, 4 band parametric eq, pan, reverb and delay effects, mute/solo and record/play functions for each track - all with a fast, fluid, intuitive workflow.

connect your eurorack, sampler, drum machine, and synthesizer outputs to 12 mono, 3.5 mm inputs and map them to 12 mono tracks or 6 stereo tracks - all with independent control for recording and playback. connect your computer to the usb c port to send and receive two channels of audio.

the bluebox eurorack edition is the ultimate in compact mixing, effects, recording, and playback for eurorack. smack it in your rack and hit the road with a self-contained, electronic music powerhouse!

features:
mix 12 mono/6 stereo tracks of live or prerecorded sound.
independently route each track to any combination of outputs: 4 mono / 2 stereo outputs, stereo headphone output
6 cv inputs for modulation and control - clock output
trs midi input and output
usb-c for external midi controllers and midi sync/clock
usb-c for 2 channel audio
microsd to record/play hours of multi-track/stereo music as 48k, 24 bit wavs and for firmware updates
ability to playback pre-recorded tracks while recording new ones
master control of the same mixer parameter across multiple tracks for faster mixes
touchscreen gestures and knobs to quickly and easily tweak parameters
four band eq per track with cut/shelf/parametric settings for each band
great reverb and delay effects with independent sends for each track
a built-in global compressor to maximize loudness and glue your mix together
save and recall project settings including all parameters for tracks, outputs, eq and effects

specifications:
dimensions & power:
30 hp
module dimensions including knobs: 6" x 5" x 1.6"
depth behind front panel with ribbon cable: 1.0"
requires the +5v rail which may not be present on some older racks. uses 500-850ma at +5v (depending on screen brightness), 320 ma at +12v, and 82ma at -12v
requires two power connections

capabilities:
12 mono tracks, 6 stereo tracks or something in between
connect to trs or usb c midi for beat syncing effects
lots of headroom with support for eurorack levels up to +/-5v inputs and outputs
3 effects: reverb, delay and compressor
records and plays back 48k, 24-bit audio wav files
4 band eq per track
durable aluminum faceplate
stream 2 channels of audio in and out over usb c
