4ms atoner eurorack kit price : $125.00

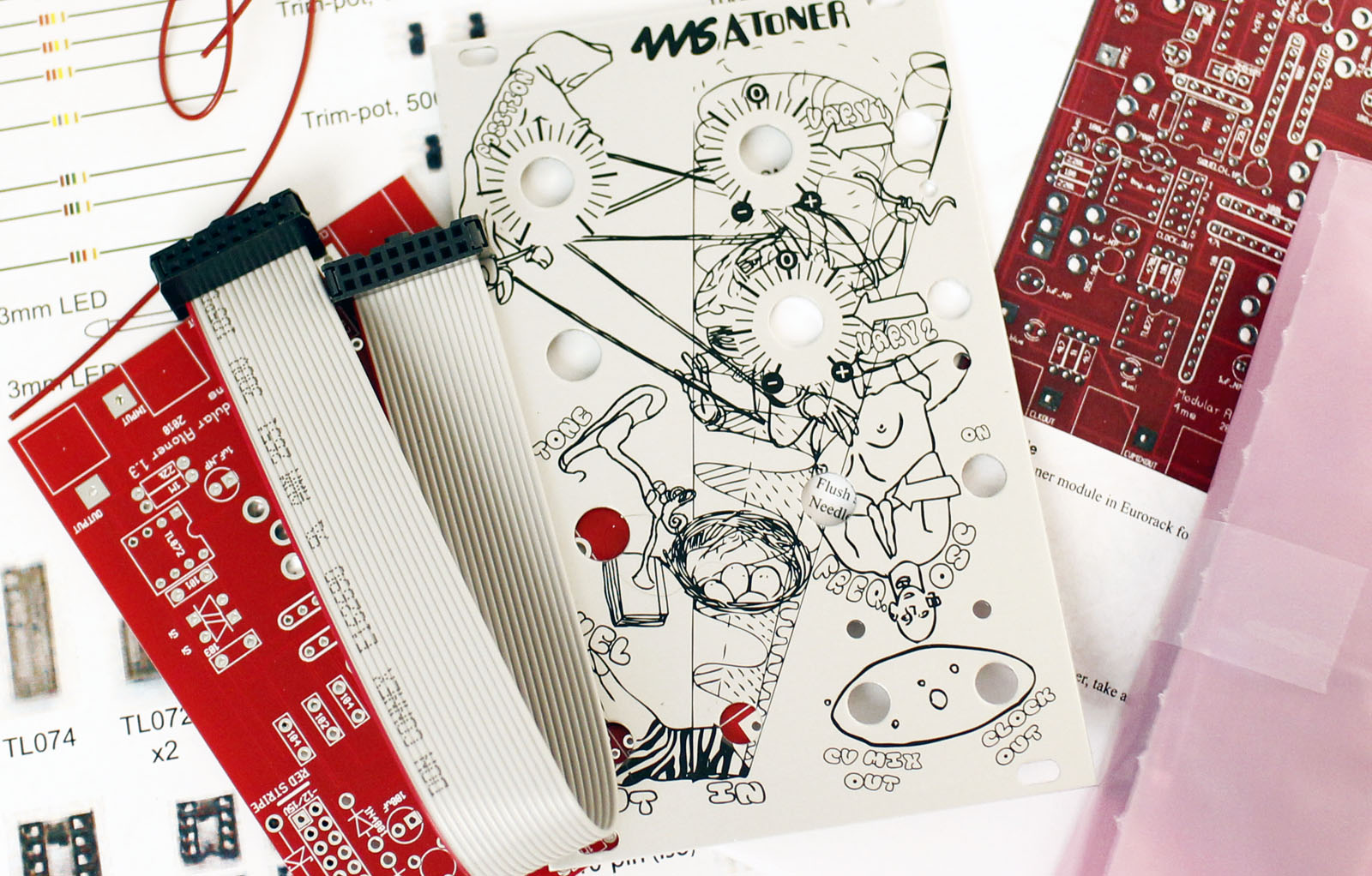

build your own atoner, with the eurorack atoner kit.

the do-it-yourself kit includes all the parts necessary to build a fully-featured eurorack atoner. this is an intermediate-level kit, you need some prior experience, and have basic hand tools (flush snips, needle-nose pliers, small screw driver, wire stripper).

harmonics are extracted from an on-board oscillator or external audio signal and outputed as audio or clock pulses. the position knob sets the cut-off frequency, under which all frequencies will be stepped downwards along a harmonic sequence (octaves, 5ths, 3rds, etc) all the way to sub-audible clicking sounds. thus, a scale or clock signal can be generated from a single tone.

two cv inputs and their respective +/- vary amount knobs modulate the position cut-off. the mix of the two cv inputs plus the position knob is outputted on a cv jack, and another cv output jack provides a steady +10v clock pulse that is jumper-selectable to be a clock division of the audio output (/1, /2, /32, /64, or non-linear division).

specifications:
the eurorack atoner consumes 60ma of power and occupies 16 h. p. of space.

download the building instruction manual here.
