4ms mini peg price : $159.00

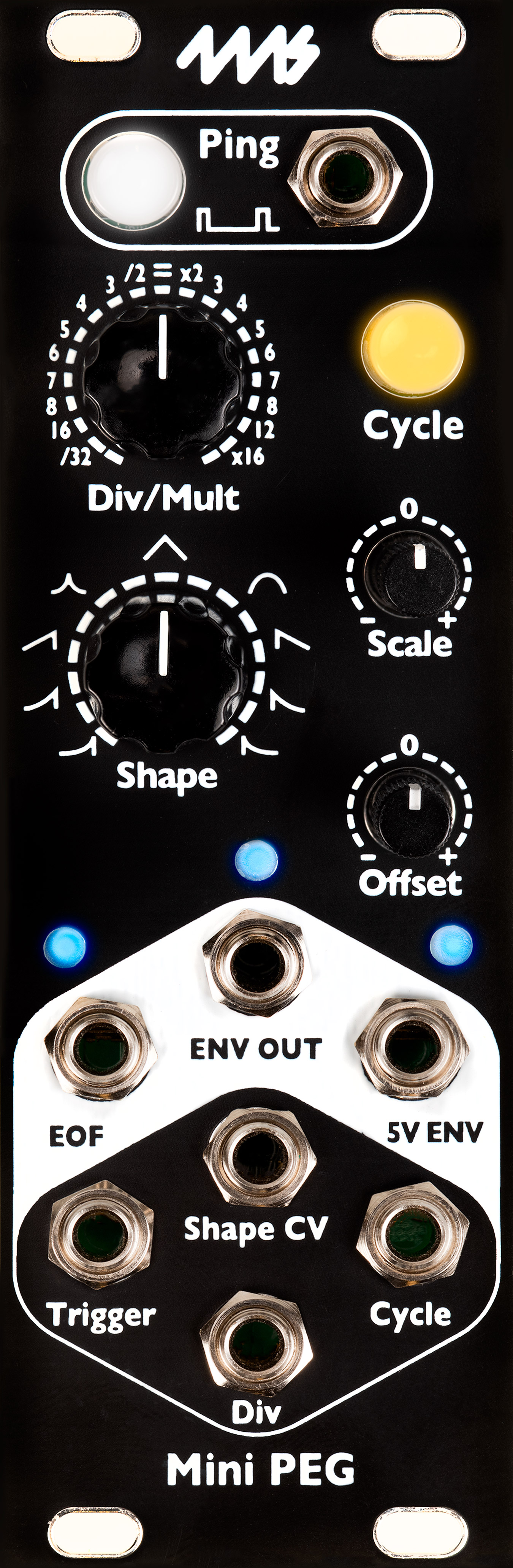

the mini peg is a clock-synced envelope generator and lfo whose envelope times are set by the time between clock pulses or "pings". the mini peg is the latest version of the classic 4ms pingable envelope generator.

features:
envelope length set by incoming clocks or "pings"
ping button (tap tempo) or external clock/triggers set the envelope time
div/mult knob and cv jack divide and multiply ping clock from /32 to x16
shape knob with full cv control for waveshaping the output envelope, includes various combinations of exponential, linear, logarithmic and interpolated curves
cycle button and gate jack for looping envelopes
scale knob acts as attenuating inverter for main envelope output
maximum 9.5v peak-to-peak
offset knob for setting dc offset, ranging from -9.4v to +9.4v
end-of-fall (eof) output jack goes high when envelope finishes a fall portion and low when envelope begins a fall portion
jack can also be configured as end-of-rise, half-rise, or tap clock out
env out jack outputs scaled/offset envelope
5v env jack output always produces a 0v to +5v envelope, independent from scale/offset
trigger jack starts or re-starts an envelope
can be configured as quantized trigger, async trigger, or async gate

specifications:
8hp eurorack format module
0.95" (24mm) maximum depth (includes power cable)
16-pin eurorack power header

power consumption: +12v: 55ma, -12v: 30ma

envelope outputs
maximum voltage range (env out): -9.4v to +9.4v
maximum amplitude (env out): 9.5vpp
voltage range (5v out): 0v to +5v
frequency range: +/-0.1db dc to 1khz, -1.0db@2.5khz, -2.0db@4khz
12-bit, 40khz sample rate

clock range: period range: 29.16 hours to 250μs (4khz)
cv inputs (div/mult and shape): voltage range: -5v to +5v
gate inputs (ping, trigger, cycle): rising edge threshold: 2.5v

download the users manual here.
