4ms
pod60: powered

price : $175.00

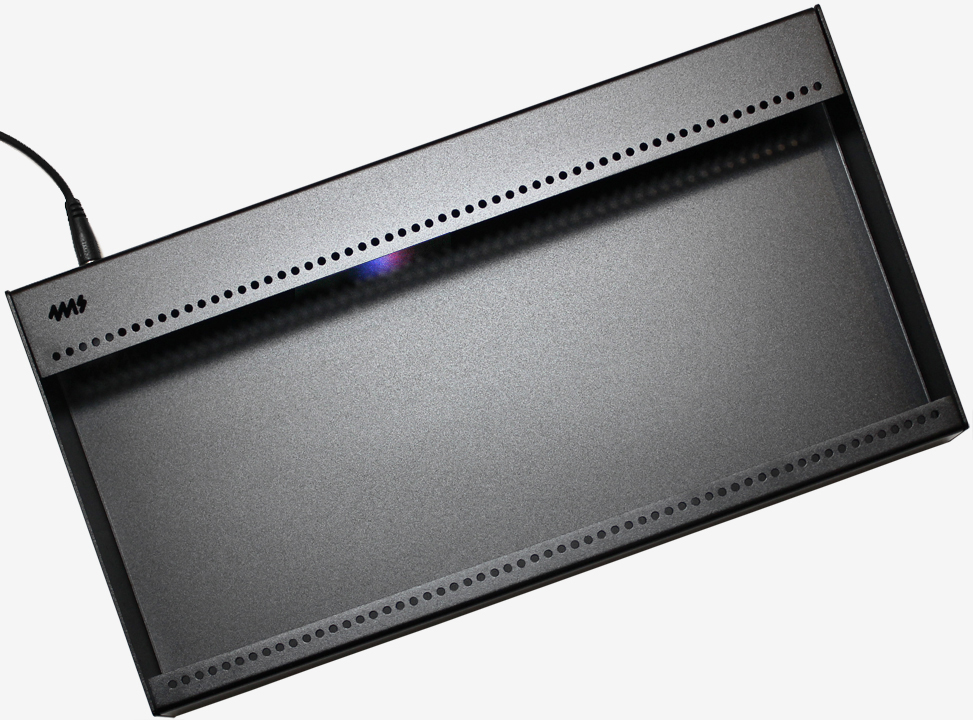

POD60: Powered

the pod60 is 60hp with 1.3" (33mm) of available module depth. the built-in power supply has four power connectors and can be daisy-chained to other pods. more power connectors can be added with the multi power cable accessory.

pods are a perfect way to get started in eurorack, or add a couple more modules to your monster system!

made from 100% anodized aluminum, pods are light, tough and perfect for on-the-go set ups. the power supply can handle up to 1.4a of +12v, which is plenty of juice for even the most modern digital modules. (or if you prefer to diy your power supply, pods are also available unpowered)

each pod60 typically will house up to four modules, but more can be accommodated using a multi-power cable accessory.

mix and match your pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. pods can even daisy- chain with the 4ms row power system making them a convenient outboard mini-skiff. need to add another module? just add a pod! need to pack light for a live set? just grab the pods you need and go!

check the depth of your modules before purchasing as some modules may not fit in the pod60. for deeper pods to house your larger modules check out the pod48x, the pod40x, or the pod34x.

features:
60 hp eurorack modular space
standard m3 threaded holes
100% lightweight anodized aluminum
built-in power supply
red, white, and blue led power indicators

specifications:
60hp pod, black anodized aluminum
built-in power supply with two eurorack power headers
m3 x 8mm pan-head screws, stainless steel (20)
adhesive rubber feet (4)
does not include barrel cable or power brick

power supply:
six 16-pin eurorack power shrouded headers
+12v max 1.4a
-12v max 0.67a
+5v max 1.0a

power input: two barrel jacks for daisy-chaining
15v-20vdc, 2.1mm positive tip

exterior dimensions:
width: 309.3mm (12.17")
height: 159.5mm (6.28")
depth: 36mm (1.42")

interior dimensions:
module depth: 33mm (1.3")
module width: 60hp
weight: 0.41 kg = 14.5 oz

download the userguide here.
