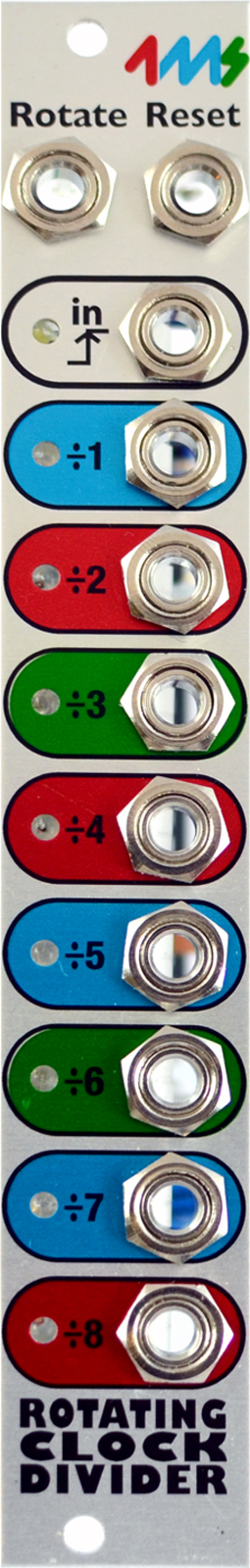

4ms rotating clock divider price : $179.00

4 h.p. eurorack format
divide-by-1 to divide-by-64, on 8 output jacks
cv rotate jack to shift divide-by amount on each jack
cv reset jack to reset/re-sync all jacks
optional break-out panels to expand functionality (midi, auto-reset, selectable divide-by range)

jacks:
clock input (5v to 15v clock, rising edge triggered), max 3khz
cv rotate (0v to +5v input)
cv reset (5v to 15v trigger)
divided clock outputs (8 jacks):
o divide-by-(1+r)
o divide-by-(2+r)
o divide-by-(3+r)
o divide-by-(4+r)
o divide-by-(5+r)
o divide-by-(6+r)
o divide-by-(7+r)
o divide-by-(8+r)
...where r is the cv rotation.
* selectable divide range up to divide-by-64: two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
* selectable auto-reset: auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

click here for the users manual
