rotating clock divider kit
(user assembly required)

price : $95.00

Rotating Clock Divider Kit

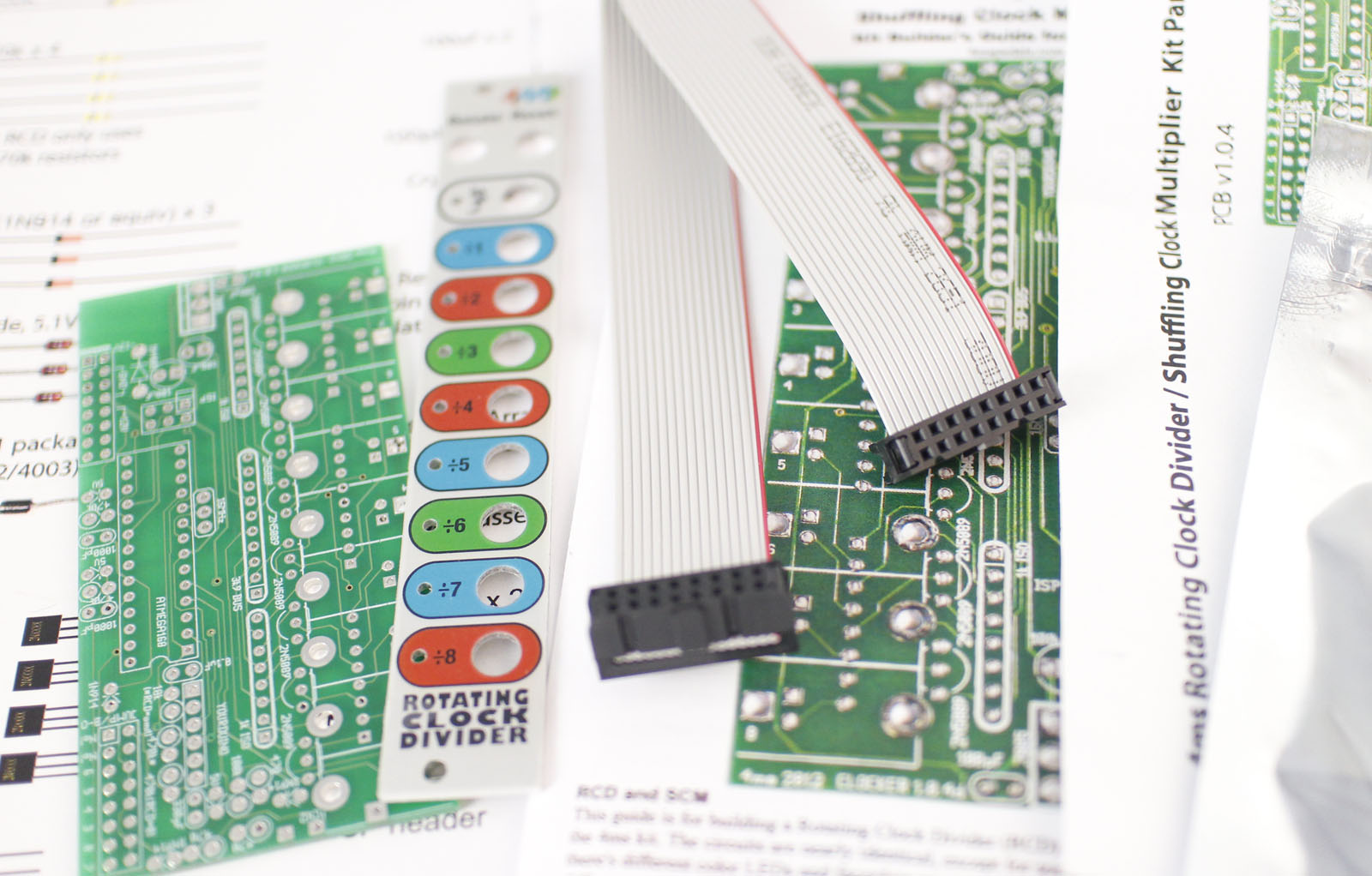

build your own rotating clock divider, with the rcd kit.

the do-it-yourself kit includes all the parts necessary to build a fully-featured rcd. this is a beginner-level kit, but you need some prior experience, and have basic hand tools (flush snips, needle-nose pliers, small screw driver).

features:
divide-by-1 to divide-by-64, on 8 output jacks
cv rotate jack to shift divide-by amount on each jack
cv reset jack to reset/re-sync all jacks
optional break-out panels to expand functionality (auto-reset, selectable divide-by range, gate/trigger, up/down-counting)

jacks:
clock input (5v to 15v clock, rising edge triggered), max 3khz
cv rotate (0v to +5v input)
cv reset (5v to 15v trigger)
divided clock outputs (8 jacks):
divide-by-(1+r)
divide-by-(2+r)
divide-by-(3+r)
divide-by-(4+r)
divide-by-(5+r)
divide-by-(6+r)
divide-by-(7+r)
divide-by-(8+r)
...where r is the cv rotation.

selectable gate/trigger mode:
selectable divide range up to divide-by-64: two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
selectable auto-reset: auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.

specifications:
the rcd is 4hp and 48mm (1.85")

power consumption:
+12v rail: __ma
+5v rail: not used
-12v rail: not used
