4ms

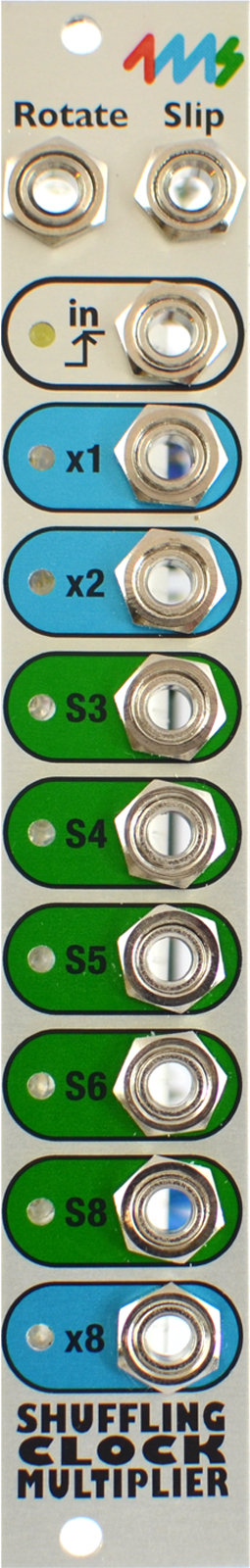

shuffling clock multiplier
price : $179.00
|

|
multiply-by-1 to multiply-by-64, on 8 output jacks
five slipped/shuffled/skipped clock outputs (s3, s4, s5, s6, s8). each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)
three steady clock outputs (x1, x2, and x8), which are not effected by slip/shuffle/skip effects
cv rotate jack to shift multiply-by amount on all jacks
cv slip causes particular beats to land ahead in time
optional break-out panel: (more details in future manual revision)
cv shuffle selects which beats are “slipped” by cv slip (default=every other beat)
cv pulse width controls width of output pulses (default=50%)
cv skip omits certain beats in a pattern (default=no skip)
re-sync input
additional cv rotate and cv slip jacks
fast cv jack, speeds up multiply-by amounts
faster cv jack, speeds up multiply-by amounts
manual knobs for shuffle, pw, skip, slip, and rotate
switches for fast and faster
uart header
connects to optional midi breakout panel
arduino-compatible
isp header: connects to in-circuit programmer such as avr isp mkii for reprogramming code
maximum input frequency 3khz
4 h.p. eurorack module
60ma power draw (+/-12v or +/-15v)
jacks
clock input (3.5v to 15v clock, rising edge triggered)
cv rotate (0v to +5v input)
cv slip (0v to +5v input)
multiplied clock outputs (8 jacks):
multiply-by (1+r)
multiply-by (2+r) and slip/shuffle/skip
multiply-by (3+r) and slip/shuffle/skip
multiply-by (4+r) and slip/shuffle/skip
multiply-by (5+r) and slip/shuffle/skip
multiply-by (6+r) and slip/shuffle/skip
multiply-by (7+r) and slip/shuffle/skip
multiply-by (8+r)
...where r is the cv rotation (0 to 63)
