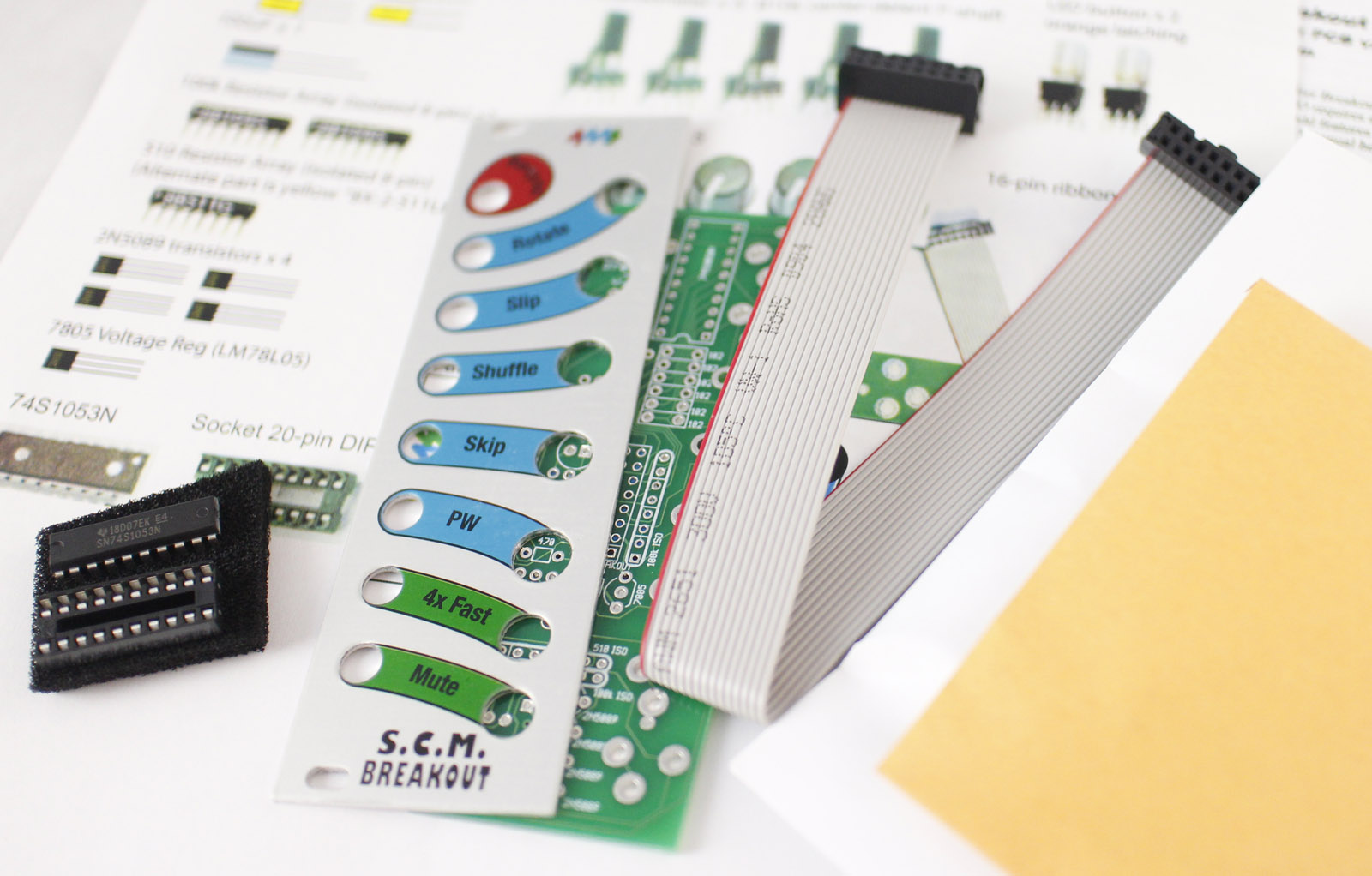

4ms shuffling clock multiplier breakout kit price : $99.00

features:
new features for version 2:
mute and 4x fast are led buttons
pressing mute or 4x fast inverts the signal on the jack
knobs are centered straight up (12:00)
rotate and slip knobs attenuate the breakout jacks, and the corresponding jacks on the main scm module are added to this attenuated signal. if nothing is plugged into the rotate or slip jaks on the breakout, the knob functions as a manual control (same as it did on version 1).
depth 25mm
power draw maximum 20ma extra from the +12v (no -12v or +5v draw).power is taken from the main scm module

expands the features of the scm:
cv shuffle jack and knob selects which beats are slipped by cv slip (default=every other beat)
cv pulse width jack and knob controls width of output pulses (default=50%)
cv skip jack and knob omits certain beats in a pattern (default=no skip)
re-sync trigger input
additional cv rotate and cv slip jacks add to main scm's rotate and slip jacks
4x fast cv gate jack and switch speeds up multiply-by amounts
mute cv gate jack and switch stops any more beats from starting

specifications:
module size: 8hp
power consumption +5v rail: not used, -12v rail: not used

click here for the user manual.
