back to main 4ms page


4ms
shuffling clock multiplier plus

price : $185.00

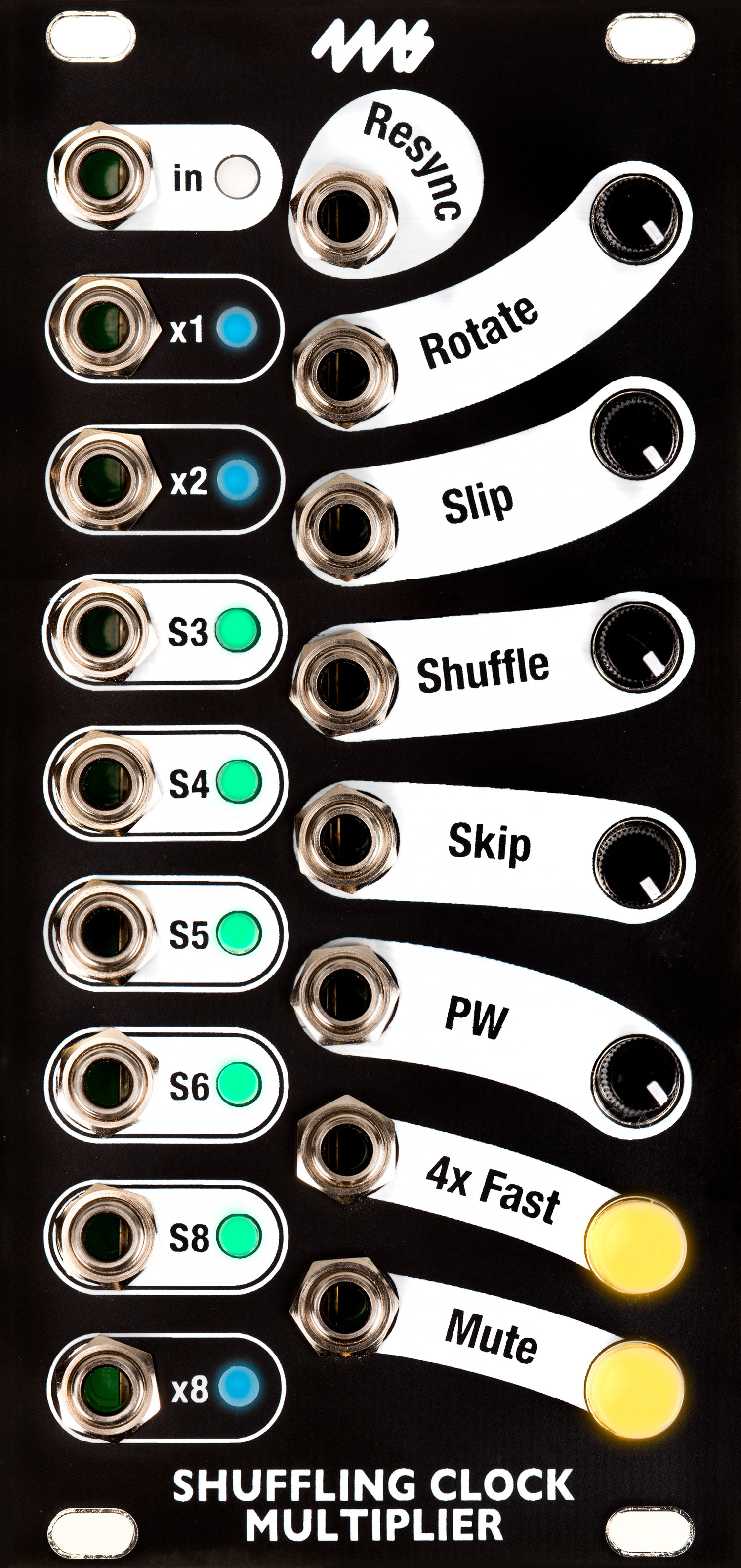

Shuffling Clock Multiplier Plus

the scm plus is a clock multiplier with eight gate outputs and complex beat manipulation features. it combines the classic shuffling clock multiplier (scm) and scm breakout (scmbo) into a single module using higher precision hardware than its predecessors.

features:
eight gate outputs, each multiplying up to x32
five slipped/shuffled/skipped clock outputs and three steady clock outputs
five knobs with cv jacks
rotate shifts multiply-by amount
slip causes particular beats to land ahead in time
shuffle selects which beats are affected by slip
skip omits certain beats in a pattern
pulse width controls width of output pulses
resync trigger input resets the slip/shuffle/skip counters
4x fast button and gate jack increase multiply-by amount by a factor of four
mute button and gate jack stop all outputs
save clock feature restores last saved tempo when powering up
clock bus jumper allows module to receive tempo from other modules over the power bus
free run jumper allows unit to operate without an external clock
led dimmer trimpot allows for custom led brightness
12hp eurorack module

specifications:
electrical and mechanical specifications
12hp eurorack format module
0.95" (24mm) maximum depth (includes power cable)
16-pin eurorack power header

power consumption
+12v: 52ma max
-12v: 15ma

clock input
2.5v threshold
40khz maximum

clock outputs
12v gate outputs, rise/fall time approximately 1us
40khz maximum
jitter (x1 output): max 30μs < 120bpm, max 5μs >= 120bpm
latency (clock in to x1 output): 8μs worst-case, 3.5μs typical

cv inputs:
rotate, slip: knob attenuates jack signal. full range: 0v to +3.3v
shuffle, skip, pw: knob offsets jack signal. full range: -5v to +5v

gate inputs:
4x fast, mute: 2.5v threshold. button toggles state.

download the user manual here.
