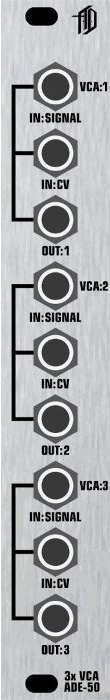

abstract data ade-50: 3x vca
price : $185.00
|
|
the ade-50 provides 3 all-analogue voltage controlled amplifiers based on a modern operational transconductance amplifier design.
the vcas are designed to provide a good balance between the performance and specification of modern 'on-chip' vcas and the character and musicality of classic analogue designs.
the ota core of each vca is fully discrete - it is built from only resistors, capacitors and transistors - however, the cv conditioning, audio input and output stages are built using high-quality op-amps
giving the best balance between musicality, character and performance.
the ade-50 provides a good signal-to-noise ratio, linearity, attenuation, an output level at unity gain at 5v cv input, minimal cv 'bleed'and minimal output offset/bias.
download the manual here.
|
