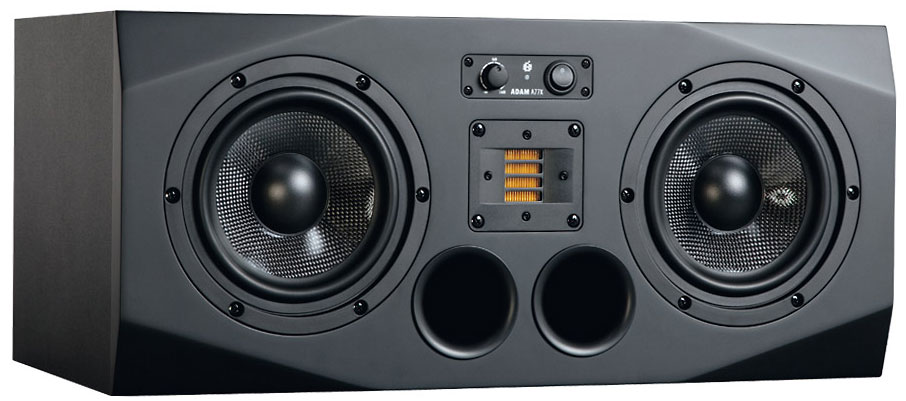

adam professional audio a77x studio monitor: speaker pair price : $2,499.98

the a77x is a horizontally designed monitor that combines all of the technical innovations in the ax-series. due to its powerful, compression-free sound reproduction and excellent radiation characteristics, it is suitable both for nearfield and midfield monitoring.

the special feature of the a77x is its 2 ½-way system. both 7" woofers start to work together at 38 hz and at 400 hz one woofer fades out and only the second woofer continues to operate in the midrange up to 3 khz. this prevents interferences and possible phase cancellation in the critical midrange. even though frequency transitions and potential distortions lie outside these areas, the human ear is particularly sensitive to midrange frequencies.

especially noteworthy in the a77x is the extremely wide stereo foundation and brilliant stereo imaging. treble and mids are reproduced with three-dimensional realism and the lows are, as expected from a double woofer design, massive without compromising on precision.

technical data:
subwoofer
number: 2
basket ø: 7" (175 mm)
voice coil ø: 1.5" (38 mm)
cone material: carbon / rohacell / glass

tweeter:
number: 1
type: x-art
diaphragm area 4 inch² (2420 mm²)
equiv. diaphragm ø 2" (56 mm)
velocity transform ratio 4:1
diaphragm weight 0.17 g

built-in amplifiers:
subwoofer: 1
type: pwm
amp. power rms / music: 100 w / 150 w
subwoofer: 1
type: pwm
amp. power rms / music: 100 w / 150 w
tweeter: 1
type: a/b
amp. power rms / music: 50 w / 75 w

control panel:
input sensitivity: -∞ to +14 db
high shelf eq > 5 khz: ±6 db
low shelf eq < 300 hz: ±6 db
tweeter gain: ±4 db

input connectors:
analog: xlr / rca
location: rear

general data:
panel: front
frequency response: 38 hz - 50 khz
thd 90db/1m > 100 hz: ≤0.5 %
max spl with sine wave acoustic 100hz to 3khz at 1m: ≥114 db
max spl per pair at 1m: ≥122 db
crossover frequencies: 400 / 3000 hz
input impedance: 30 kohm
weight: 28.2 lb (12,8 kg)
magnetically shielded: no
height x width x depth: 9.5" (235 mm) x 21" (530 mm) x 11" (280 mm)
warranty: 5 years

download the users manual here.
