addac system addac111 ultra .wav player price : $649.00
addac111b ultra .wav player expansion price : $169.00

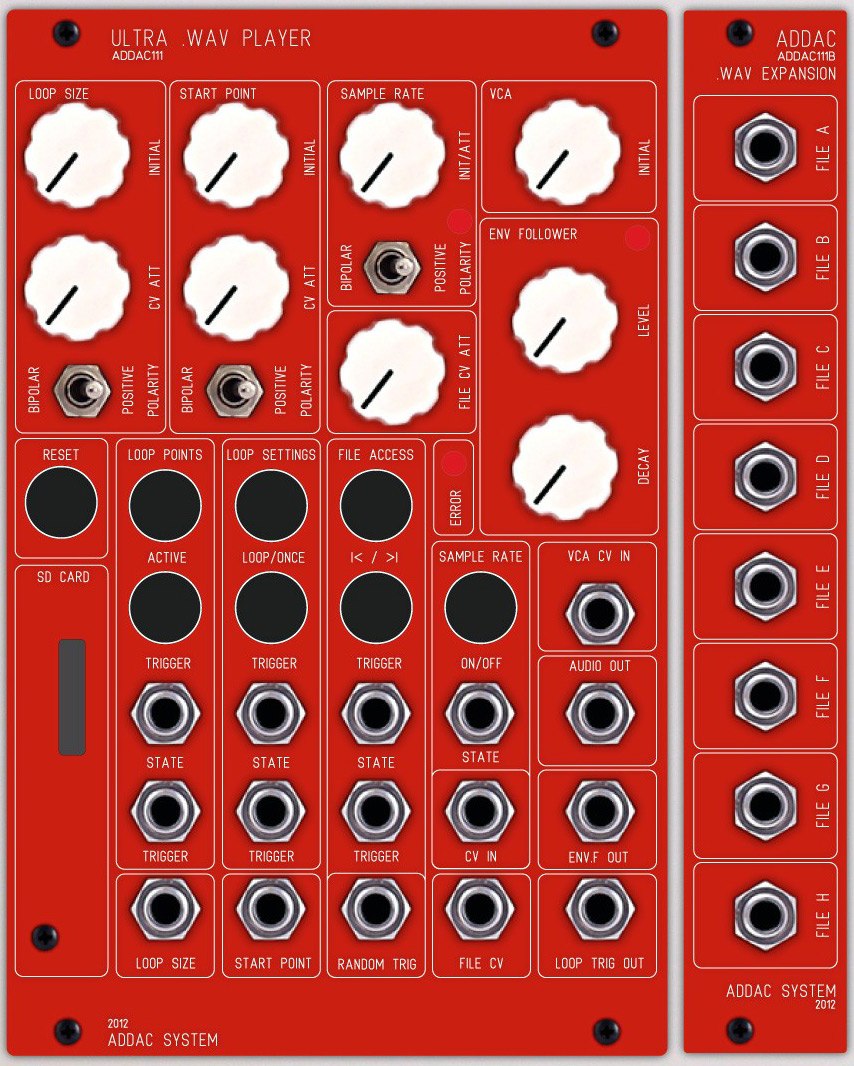

the addac111 ultra .wav player is the long waited upgrade to our praised addac101 .wav player. while keeping all functions of the original, there's more dedicated controls as well as a few new functions. for this version we chose to use micro sd cards, this decision was made in order to help the hardware construction and make it only 3cm deep.

the .wav player basic principle of operation is simple:
the loop size, start point and sample rate defines how the loop is played.
loop settings defines if sample is looping or playing only once.
file access if it advances to the next or previous file.
the vca section controls the overall volume of the module.
and finally the envelope follower generates a cv voltage related to the amplitude of the audio signal pre-vca.

an expansion module, addac111b, was also created to allow users to recall the first 8 files through dedicated trigger signals. this allows sequencing of files.

features:
the 111 is a mature .wav player based on what we felt the 101 was missing mixed with a revision of all the feedback we got over the years from all the 101 users. here are the new key features not present in the standard 101 .wav player:

better control for loop size and start point, with cv attenuator separate from initial pot. bipolar inputs are now allowed as well
dedicated controls for file selection:
individual skip with state (up or down)
independent random gate in
cv input (all files mapped to 0-5v, allows sequencing of files)
dedicated loop settings state (one shot / loop) with external control
dedicated sample rate on/off state with external control
sample rate now also allows bipolar inputs
implemented 1v/oct sample rate, from -4 to +1 octave

implemented loop points feature, which can store a loop inside a loop or a an independent loop also with external control, operates like dj cd players loop function, press 1 marks loop start, press second time marks end point and starts looping. with on/off state and external control.

the expansion also allows instant skip to the first 8 wav files in the card, allowing gate sequencing wav files.

specificaitons:
mechanical:
format: eurorack
width: 16 hp
depth: 3 cm

control voltage i/o:
cv inputs: ± 5v
cv outputs: 0 +10v

electrical:
max current: 150ma
compatible with +-12v and +-15v power supplies
bus board cable: 8x2 idc (doepfer style) connect

about the addac system 111b expansion:
the addac111b expansion allows the user to access the first 8 files (a to h) through a trigger. files do not play simultaneously, if several triggers happen at the same time top priority goes from top to bottom. meaning that if b e and f triggers are received at once the file that will be played is file b. the expansion module should be plugged to the back of the ultra .wav player module. there's no connection to the bus board.

download the users guide here.
