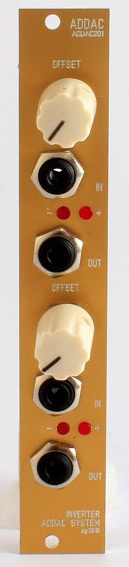

addac system addac201 cv inverter price : $185.00

a dual channel voltage inverter that turns your cv signals from positive to negative and vice-versa. this one also comes with an offset control knob, so you can shift your voltage to the desired range.

it also features two leds per channel, to indicate if your output is either positive or negative.

features:
each of the two channels has:
1 input
1 output
1 offset knob
2 polarity leds.

specifications:
mechanical:
format: eurorack
width: 4 hp
depth: 2.5 cm

control voltage i/o:
cv inputs: ± 10v
cv outputs: ± 10v

electrical:
compatible with +-12v and +-15v power supplies
max current: 30ma
bus board cable: 8 x 2 idc (doepfer style) connector
