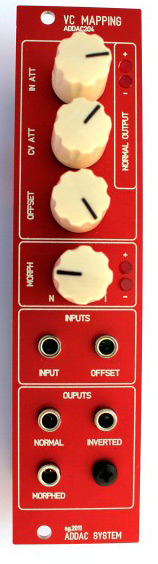

addac system addac204 vc mapping
price : $240.00
|
|
with the vc mapping module you'll be able to scale your voltage and also control its offset via cv. this module provides two outputs for normal and inverted output voltages. a third output morphs between the
normal and inverted outputs
features:
input, with attenuator knob
offset cv input, with attenuator knob
3 outputs: normal, inverted, morphed
morph knob
specs:
mechanical:
format: eurorack
width: 6 hp
depth: 2 cm
control voltage i/o:
cv inputs: ±10v
cv outputs: ±10v
electrical:
compatible with +-12v and +-15v power supplies
max current: 40ma
bus board cable: 8 × 2 idc (doepfer style) connector
|
