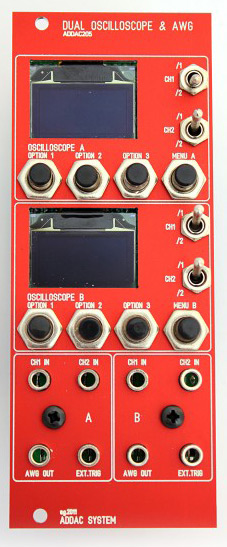

addac system addac205 dual oscilloscope & awg price : $425.00

this is a compact module with two dual channel oscilloscopes, allowing you to visualize your waveforms (voltages and audio) on two high-contrast oled screens. you get two channel inputs per oscilloscope and 4 buttons to navigate on the menu-based system. each of the oscilloscopes is also capable of arbitrary waveform generation at 8 bits and 44.1khz.

features:
two oscilloscopes
each oscilloscope features:
2 channel inputs (with commutable switches)
1 arbitrary wave generator (sine, triangle and saw)
1 external trigger
4 buttons for menu-based navigation

specs:
oscilloscope:
screen refresh rate: 128hz

mechanical:
format: eurorack
width: 10 hp
depth: 5 cm

control voltage i/o:
cv inputs: ±10v
cv outputs: 0 - 5v

electrical:
compatible with ±12v and ±15v power supplies
max current: 150ma
bus board cable: 8 × 2 idc (doepfer style) connector
